Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rear seat back bolster cover onto the pad.

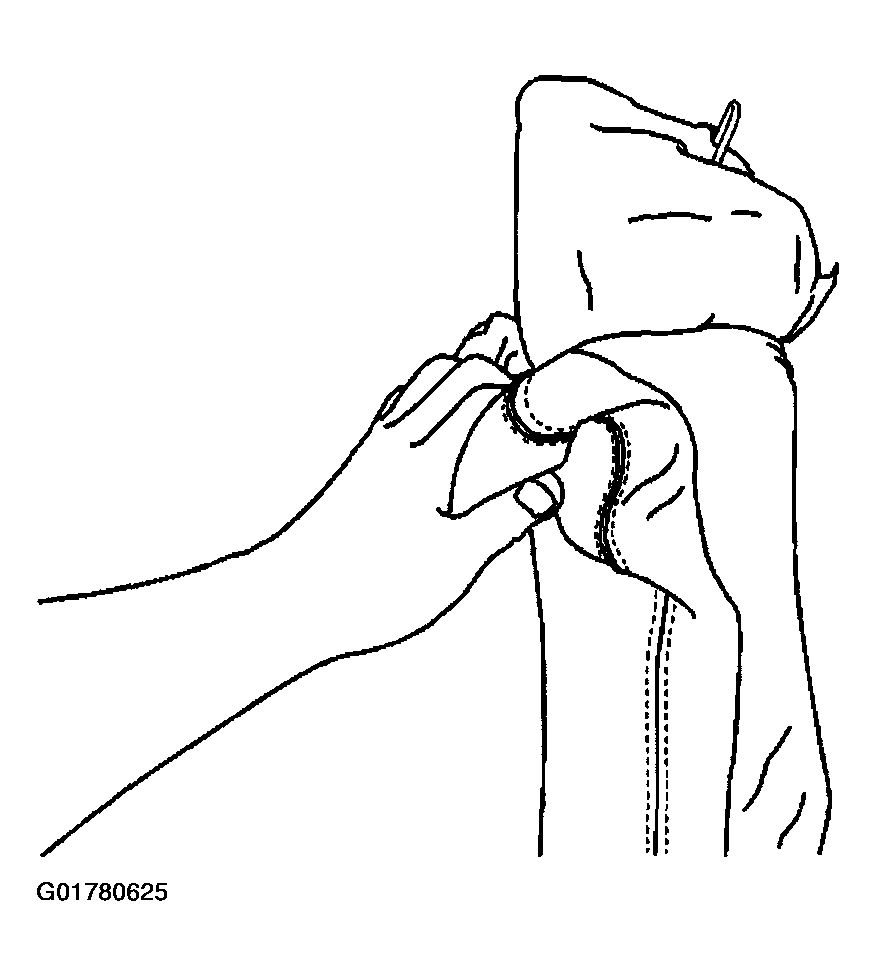

    Fig 1: Installing Rear Seat back Bolster Cover
    G01780625Courtesy of GENERAL MOTORS CORP.
  2. Install the rear seat back bolster cover to the pad by pulling up and over the U-bracket.
  3. Install the rear seat back bolster. Refer to Seat Back Bolster Replacement - Rear Split Folding  .

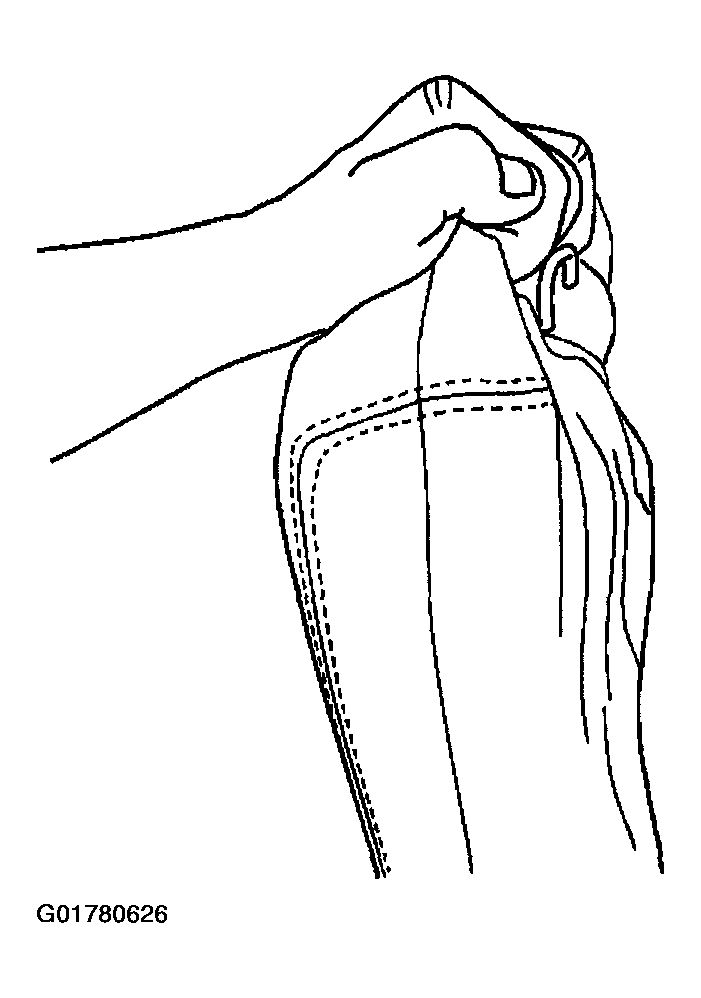

    Fig 2: Installing Rear seat Back Bolster Cover
    G01780626Courtesy of GENERAL MOTORS CORP.
