Horizontal Travel

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Operate the seat control switch until one adjuster reaches the full forward position.
  2. Detach the horizontal drive cable (3) from the adjuster that has reached the full forward position.
  3. Operate the seat forward until the other adjuster reaches the full forward position.
  4. Connect the horizontal drive cable (3).
  5. Inspect the horizontal travel of the seat.

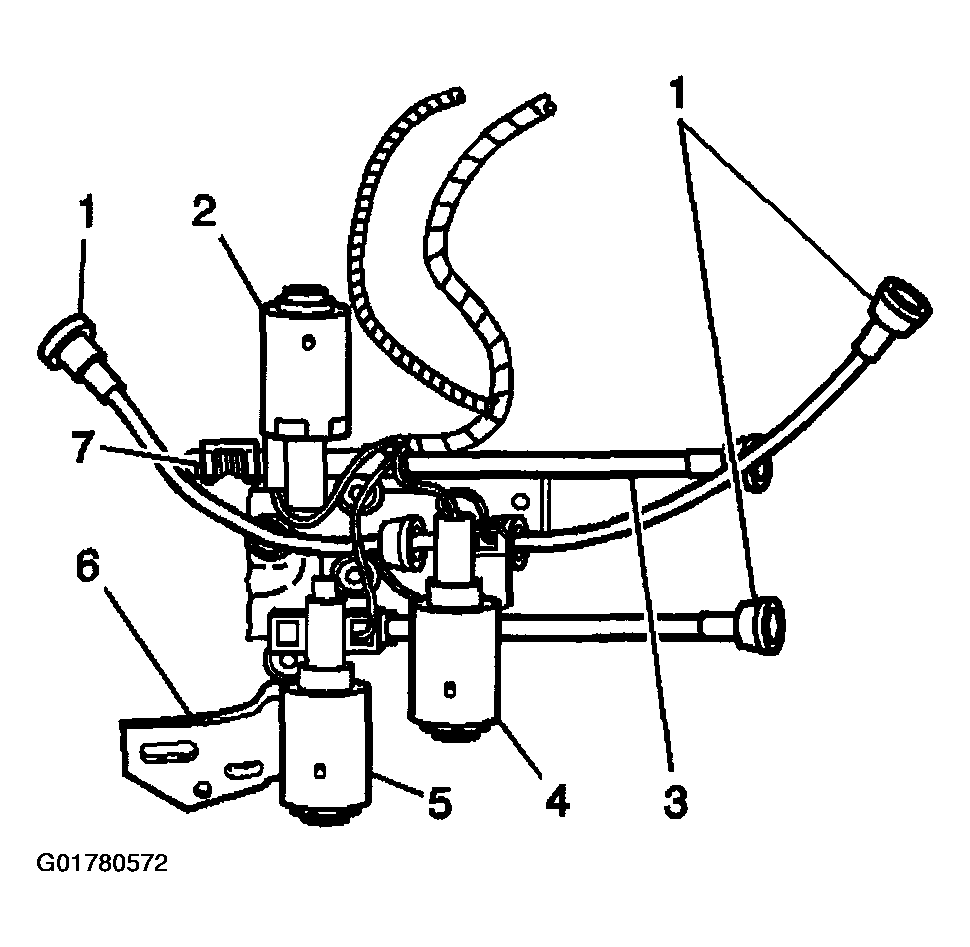

    Fig 1: Identifying Horizontal Drive Cable
    G01780572Courtesy of GENERAL MOTORS CORP.
