Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grommet to the motor support bracket (6). Secure the motor (2, 4, 5) to the grommet using appropriate rivets.
  2. Install the motor support bracket (6) to the seat adjuster.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the motor support bracket nut to the seat adjuster.

    Tighten

    Tighten the nut to 4 N.m (35 lb in).

  4. Install the retaining clip (7) to the horizontal motor (2).
  5. Install the drive cables (1, 3) to the vertical and horizontal actuators.
  6. Push the drive cable connectors into the actuators until a loud audible click is heard.
  7. Connect the electrical connectors to the motors (1, 2, 3).
  8. Install the front seat. Refer to Seat Replacement  .
  9. Return the seat to the original position.

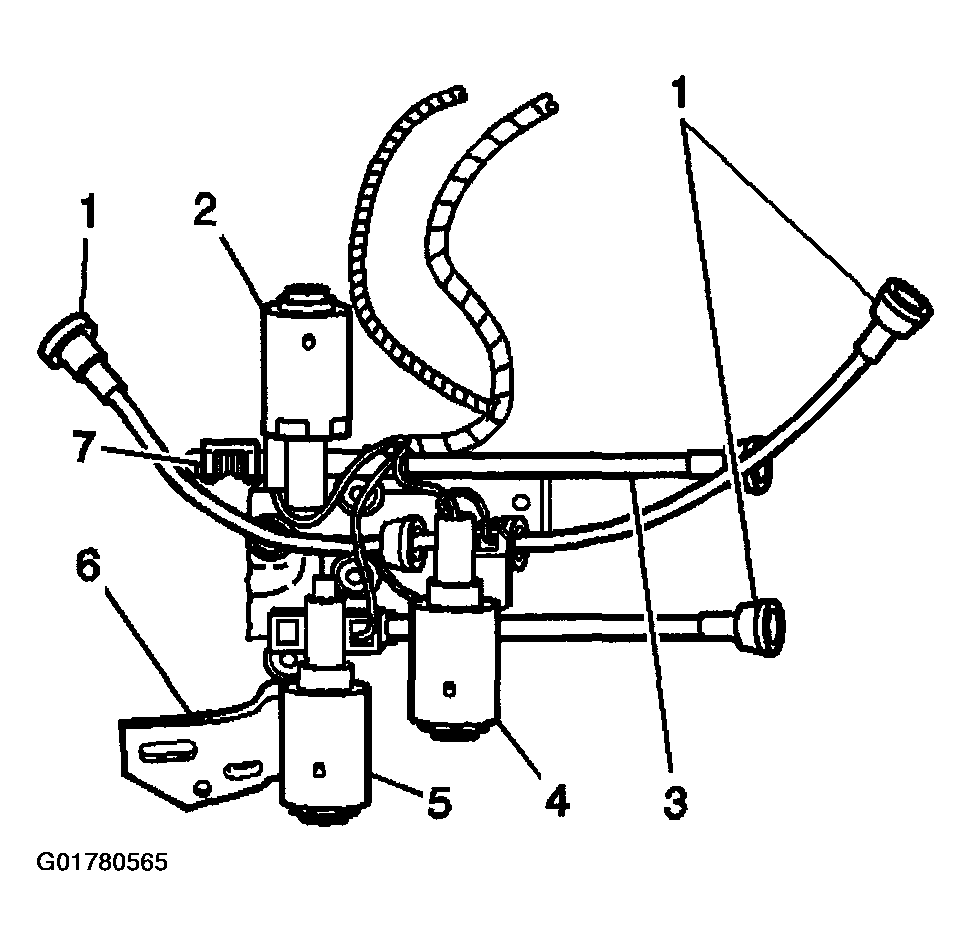

    Fig 1: Installing Front Seat Adjuster Motor
    G01780565Courtesy of GENERAL MOTORS CORP.
