Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the guide through the opening in the seat back frame.

    Press inward on the guide until fully seated into the seat back frame.

  2. Adjust the seat back cover to a desired appearance.
  3. Fasten the J-hook retainer at the bottom edge of the seat back cover.
  4. Install the headrest to the front seat. Refer to Head Restraint Replacement - Front Seat .
  5. Return the seat back to the original position.
  6. Check the headrest for proper operation.

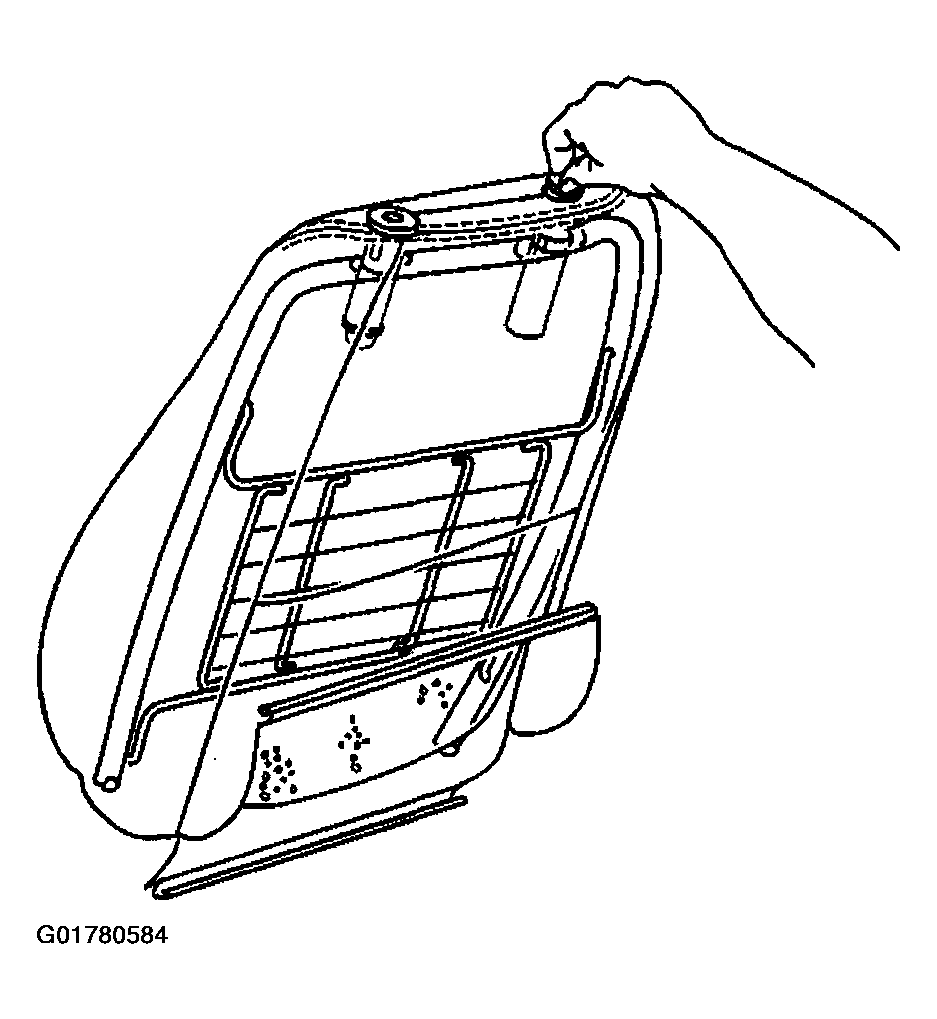

    Fig 1: Installing Headrest Guide
    G01780584Courtesy of GENERAL MOTORS CORP.
