Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the head restraint to the guides in the seat back.
  2. Install the head restraint pressing down until the head restraint stops at the detent.
  3. Reposition the head restraint to the original position.
  4. Install the seat belt strap to the guide, if required.

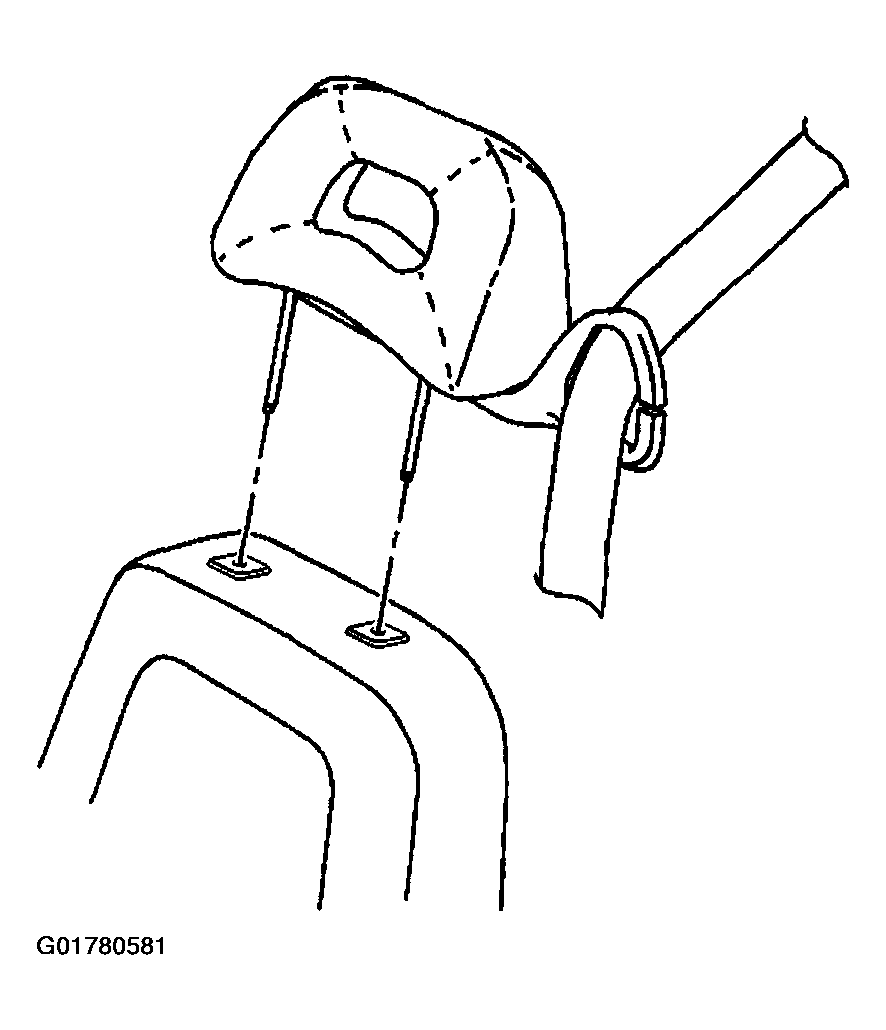

    Fig 1: Installing Head Restraint
    G01780581Courtesy of GENERAL MOTORS CORP.
