Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to Seat Replacement  .
  2. Squeeze the oblong connector (1, 2) for the vertical and the horizontal drive cables.
  3. Pull outward on the cable to remove from the following locations:
    • The motors
    • The vertical and horizontal actuators

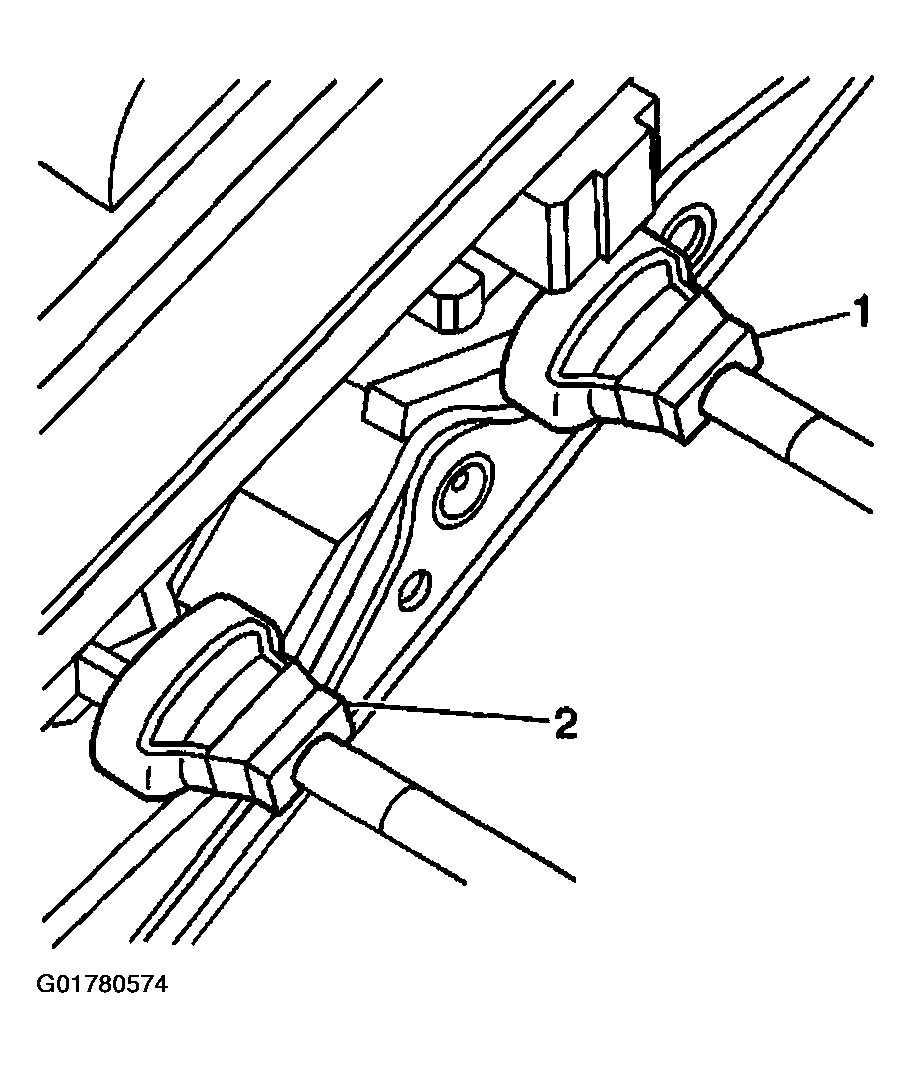

    Fig 1: Identifying Drive Cables
    G01780574Courtesy of GENERAL MOTORS CORP.
