Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cables to the following locations:
    • The motors
    • The vertical and horizontal actuators
  2. Push the connectors (1, 2) into the actuators and the motors until a loud audible click is heard.
  3. Install the front seat. Refer to Seat Replacement  .

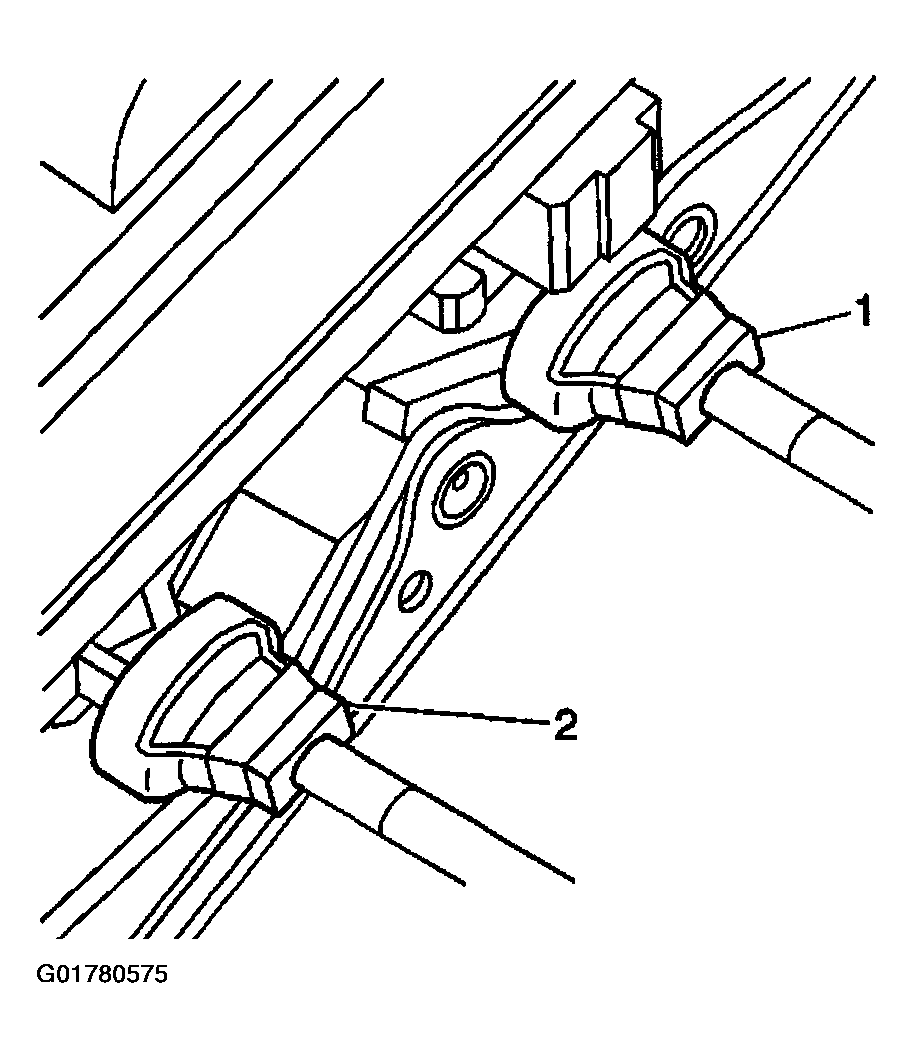

    Fig 1: Identifying Drive Cables
    G01780575Courtesy of GENERAL MOTORS CORP.
