Removal Procedure
WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Important: Place the front seat in the highest vertical setting prior to removal. This is necessary to gain access to the horizontal actuator bolts.
- Remove the front seat from the vehicle. Refer to Seat Replacement .
- If the actuator is next to the horizontal motor you will have to remove motor support bracket. Refer to Seat Adjuster Motor Replacement - Front .

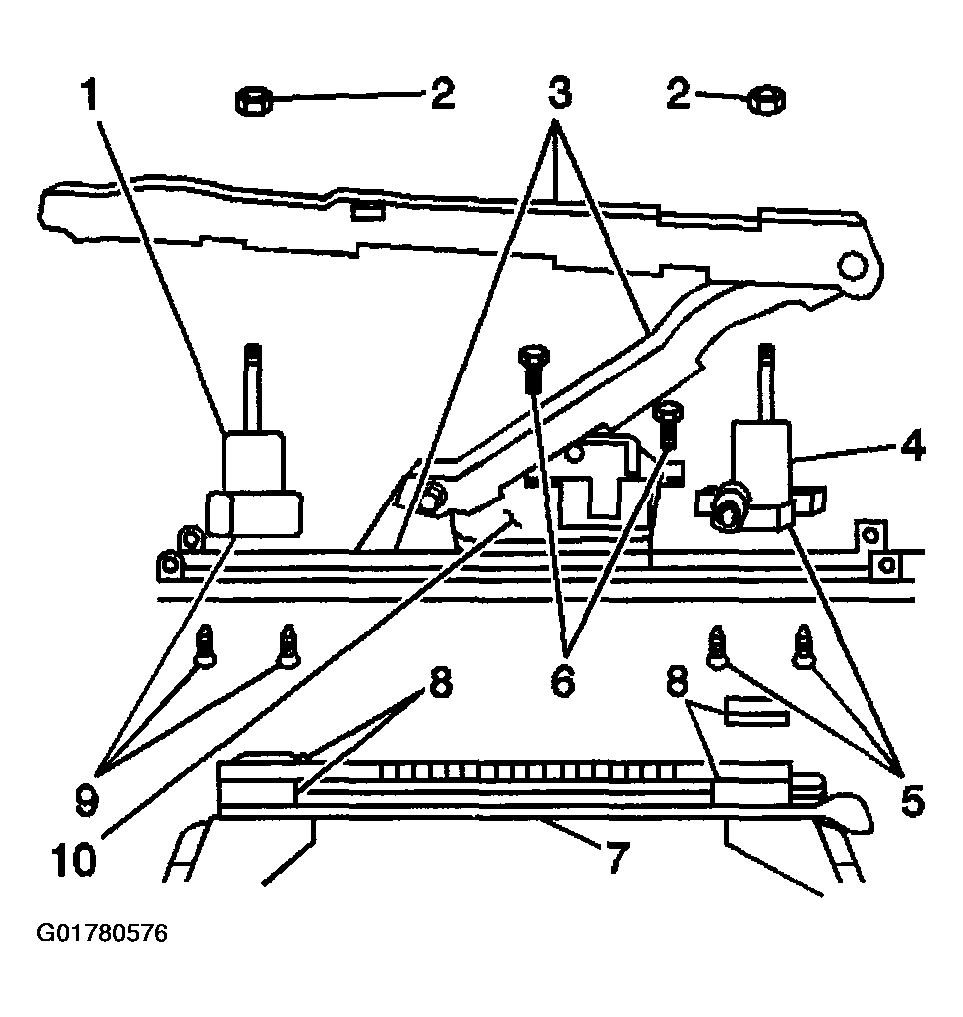

- Squeeze the oblong connector at the horizontal actuator (10).
- Remove the bolts (6) from the horizontal actuator (10).
- Remove the actuator (10) from the upper channel (3).
