Power Seat Inoperative

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

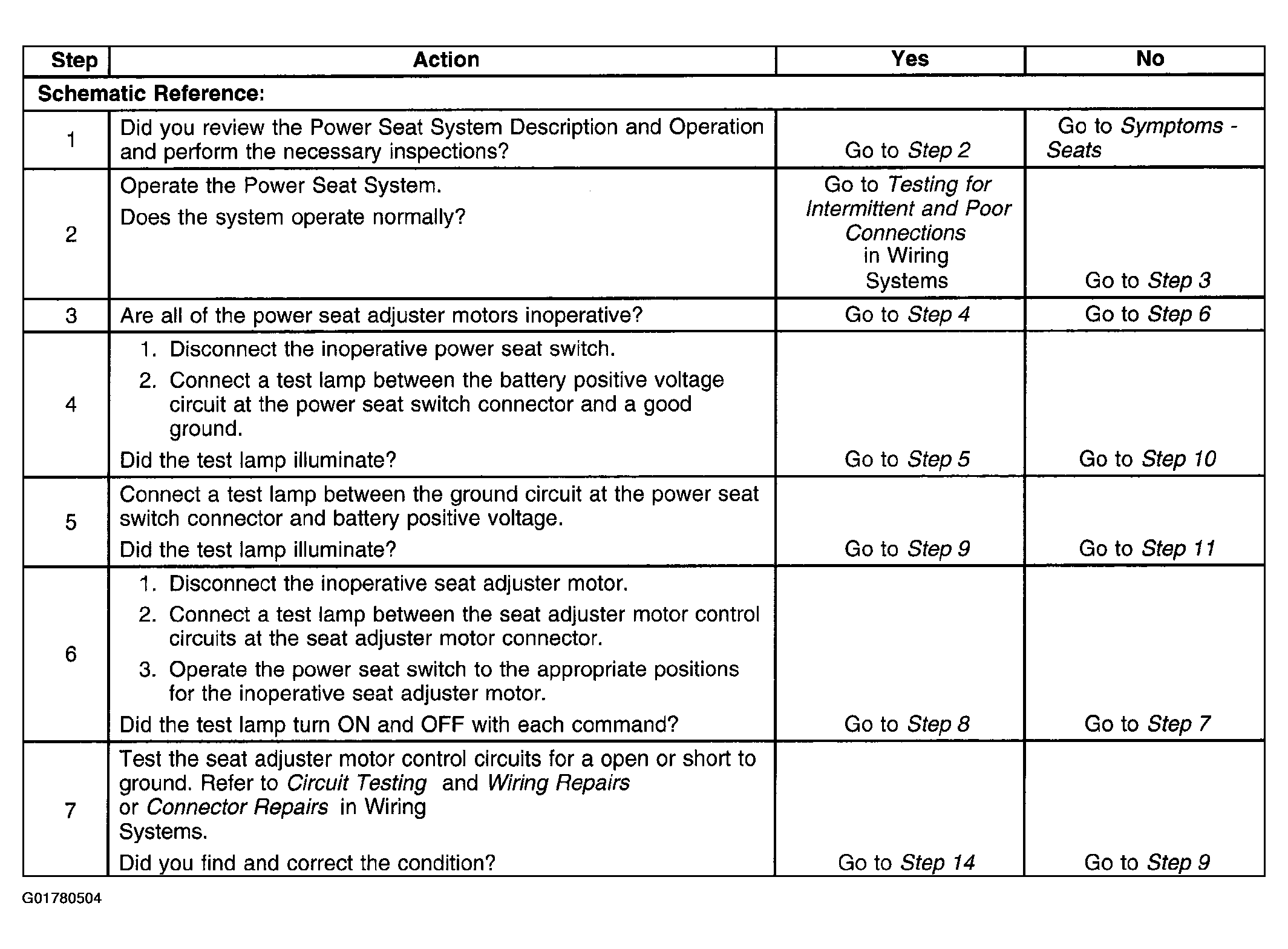

Fig 1: Power Seat Inoperative (1 Of 2)
G01780504Courtesy of GENERAL MOTORS CORP.

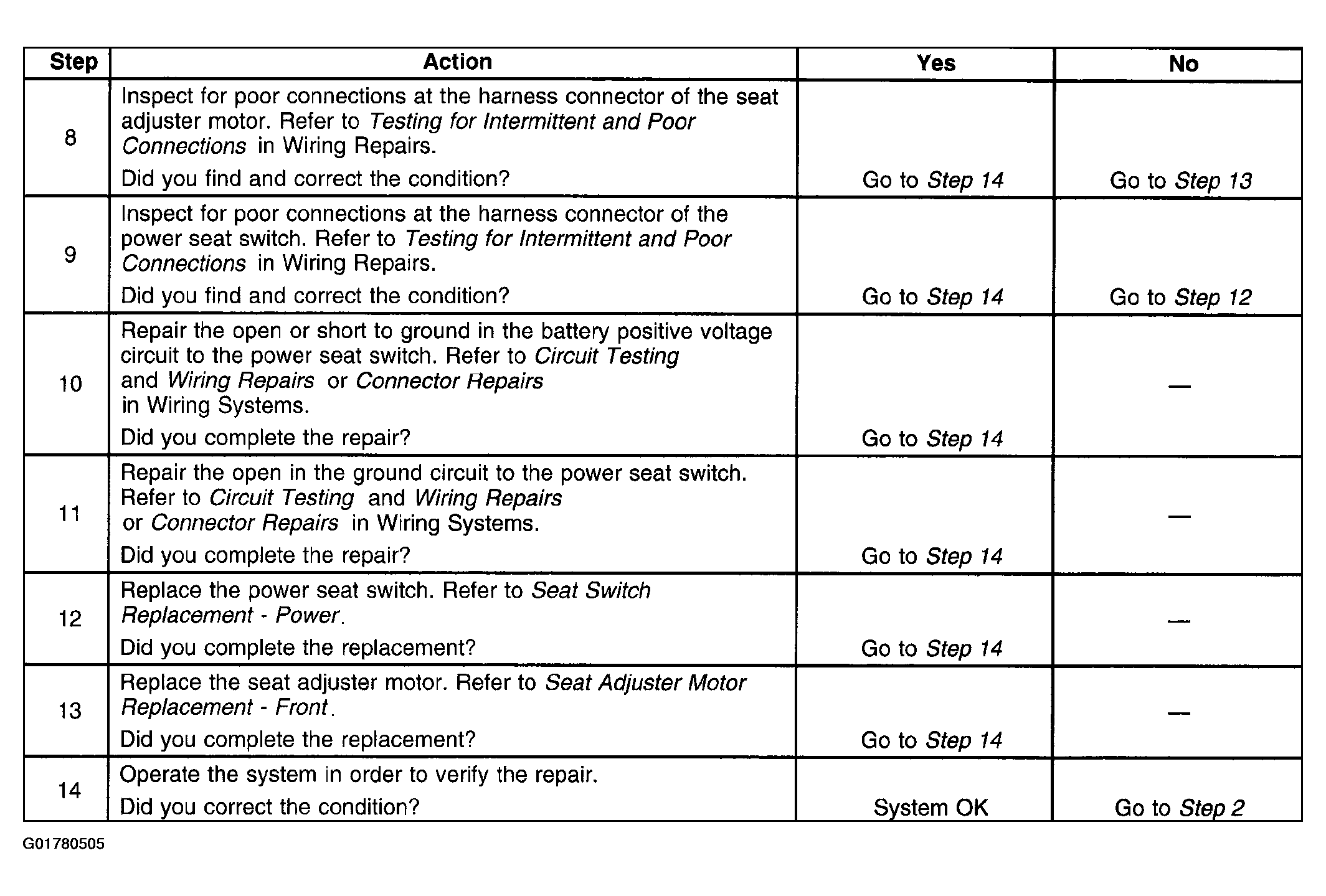

Fig 2: Power Seat Inoperative (2 Of 2)
G01780505Courtesy of GENERAL MOTORS CORP.
