Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  2. Remove the rear seat back cushion. Refer to SEAT BACK REPLACEMENT - REAR .
  3. Remove the rear window panel trim. Disengage the retainers.
  4. Remove the rear seat belt retractor anchor plate bolt.
  5. Remove the rear seat belt retractor bolt (1).
  6. Remove the rear seat outer retractor side belt.

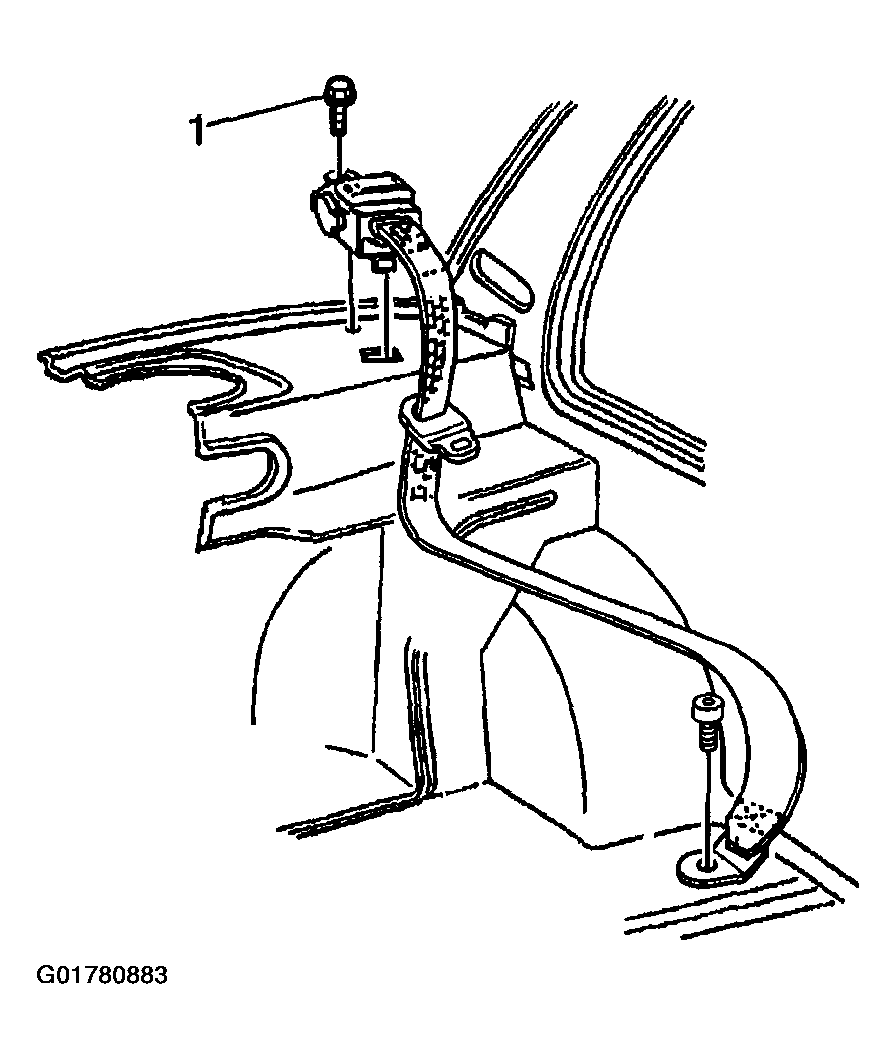

    Fig 1: Removing Rear Seat Belt Retractor
    G01780883Courtesy of GENERAL MOTORS CORP.
