Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear center latch belt (1) into the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear seat anchor bolt (2) to the rear center latch belt (1).

    Tighten

    Tighten the bolt to 42 N.m (31 lb ft).

  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR s.

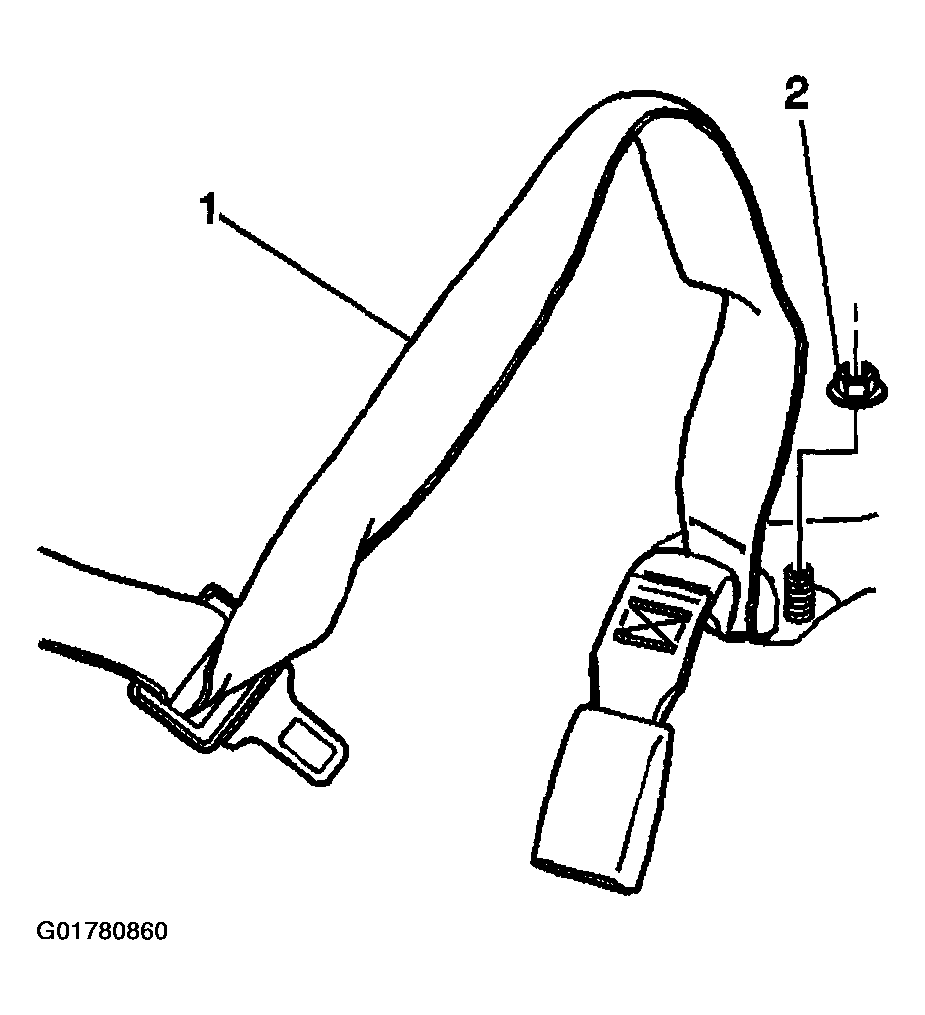

    Fig 1: Installing Center Rear Seat Belt Latch
    G01780860Courtesy of GENERAL MOTORS CORP.
