Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pillar upper trim panel. Refer to TRIM PANEL REPLACEMENT - UPPER CENTER PILLAR .
  2. Remove the front seat belt shoulder guide track cover (2).
  3. Remove the front seat shoulder belt guide track bolts.
  4. Remove the front seat shoulder belt guide track (1) from the center pillar.

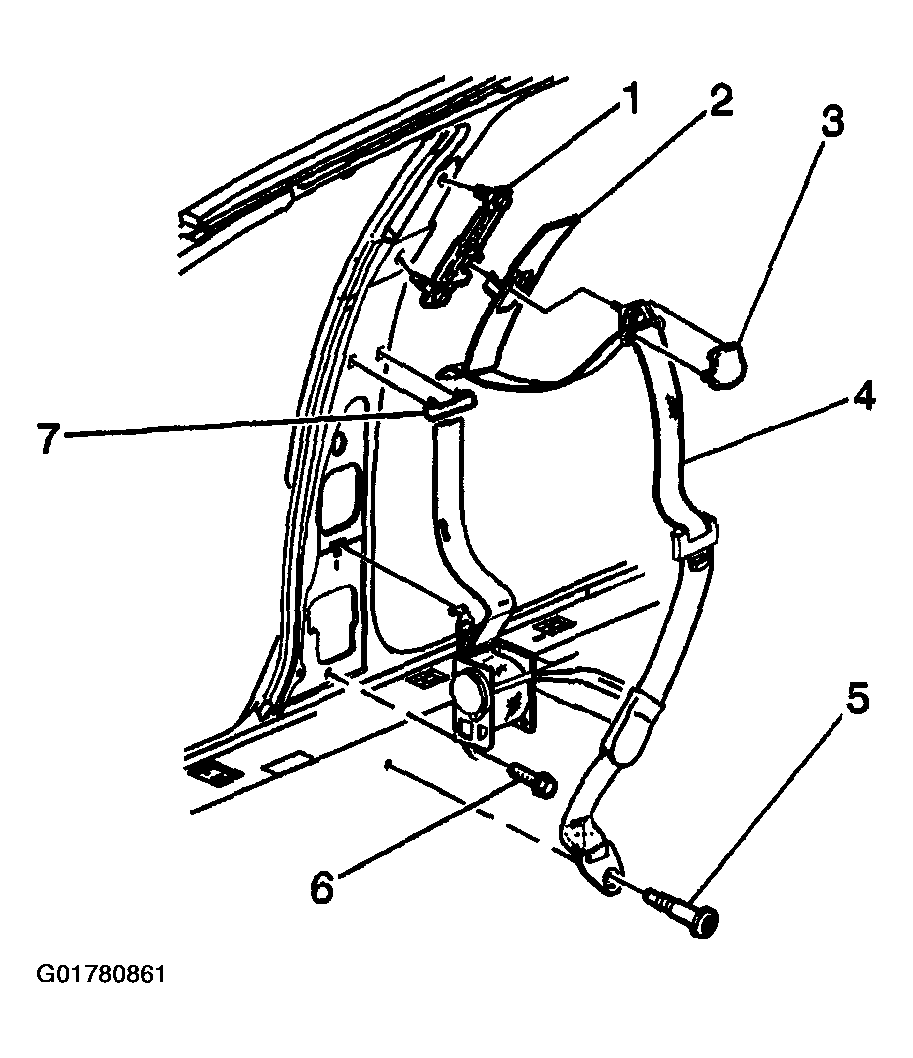

    Fig 1: Removing Front Seat Belt Height Adjuster
    G01780861Courtesy of GENERAL MOTORS CORP.
