Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the driver seat back in order to access seat belt side buckle bolt.
  2. Remove the seat belt buckle bolt (2).
  3. Remove the seat belt buckle (1) from the seat track.

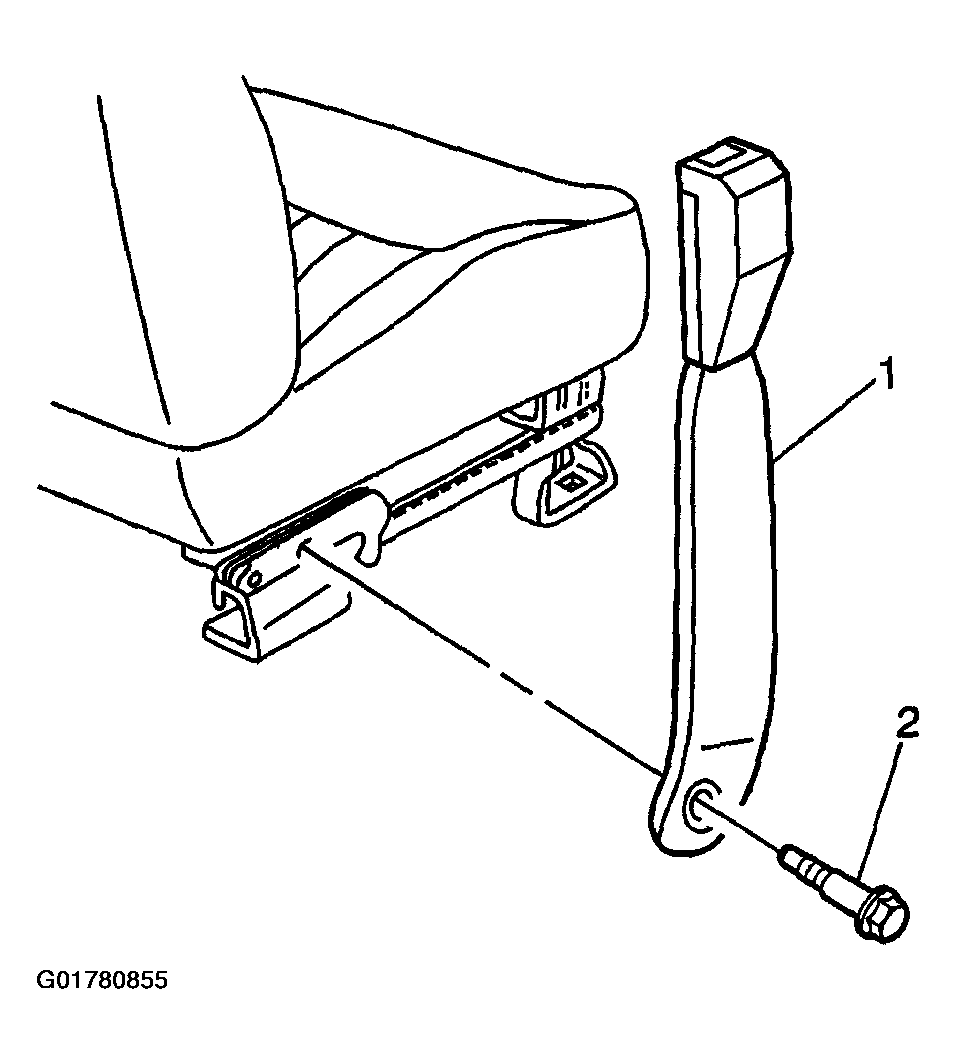

    Fig 1: Removing Seat Belt Buckle
    G01780855Courtesy of GENERAL MOTORS CORP.
