Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt buckle (1) to the seat track.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the seat belt buckle bolt (2).

    Tighten

    Tighten the seat belt side buckle bolt to 42 N.m (31 lb ft).

  3. Return the front bucket seat back to the original position.

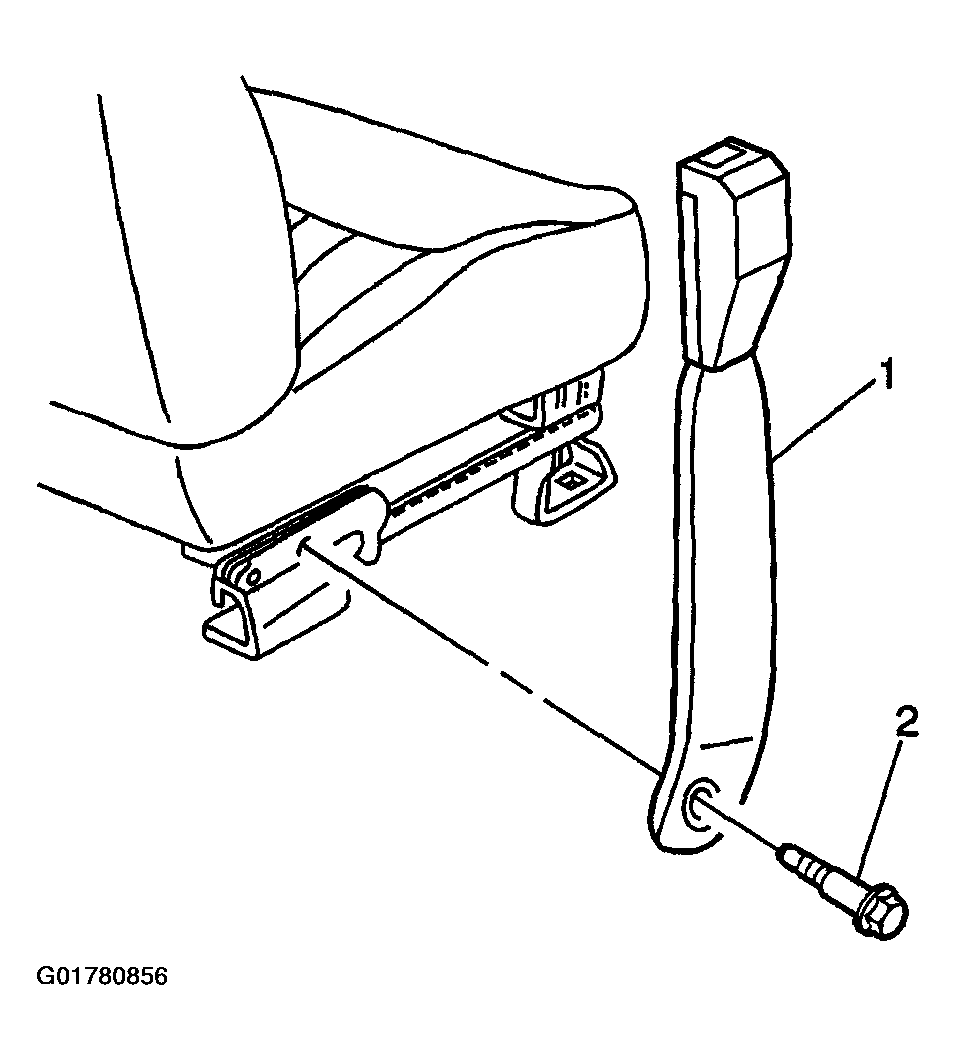

    Fig 1: Installing Seat Belt Buckle
    G01780856Courtesy of GENERAL MOTORS CORP.
