Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear seat belt buckle assembly to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the rear seat belt buckle anchor nut.

    Tighten

    Tighten the rear seat belt buckle anchor nut to 42 N.m (31 lb ft).

  3. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

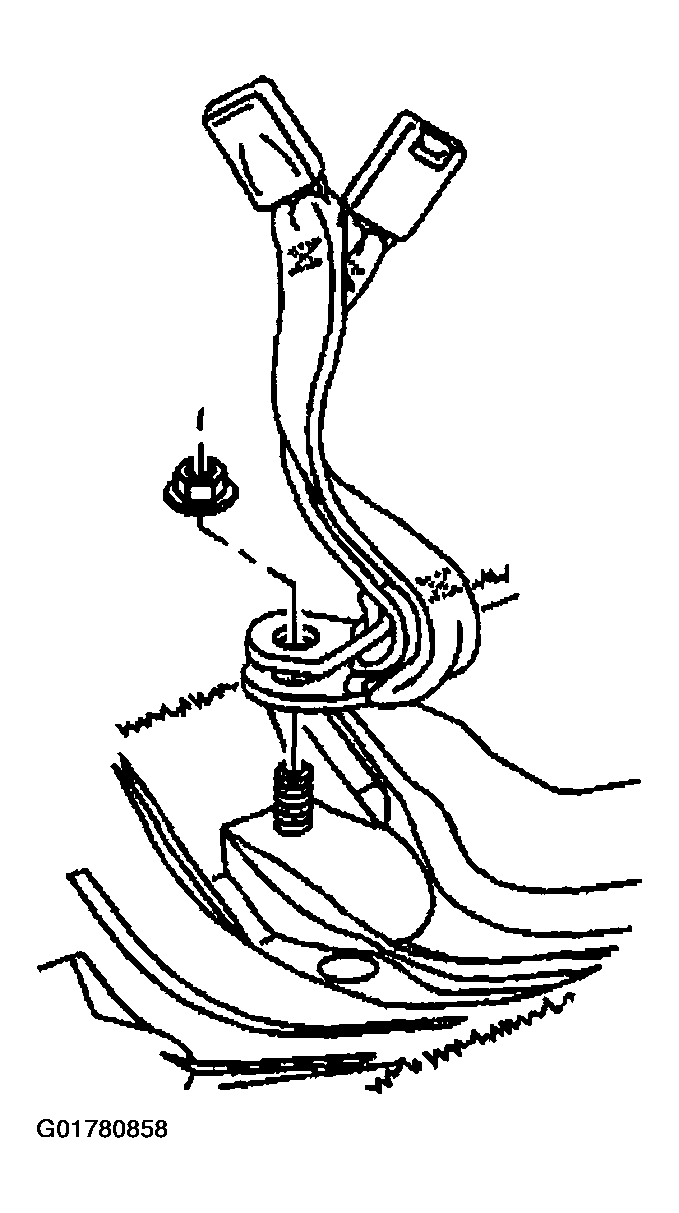

    Fig 1: Installing Rear Seat Belt Buckle
    G01780858Courtesy of GENERAL MOTORS CORP.
