Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

    If equipped with a split folding rear seat back refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING .

  3. Remove the bolts from the child seat latch bracket.
  4. Remove the child seat latch bracket from the vehicle.

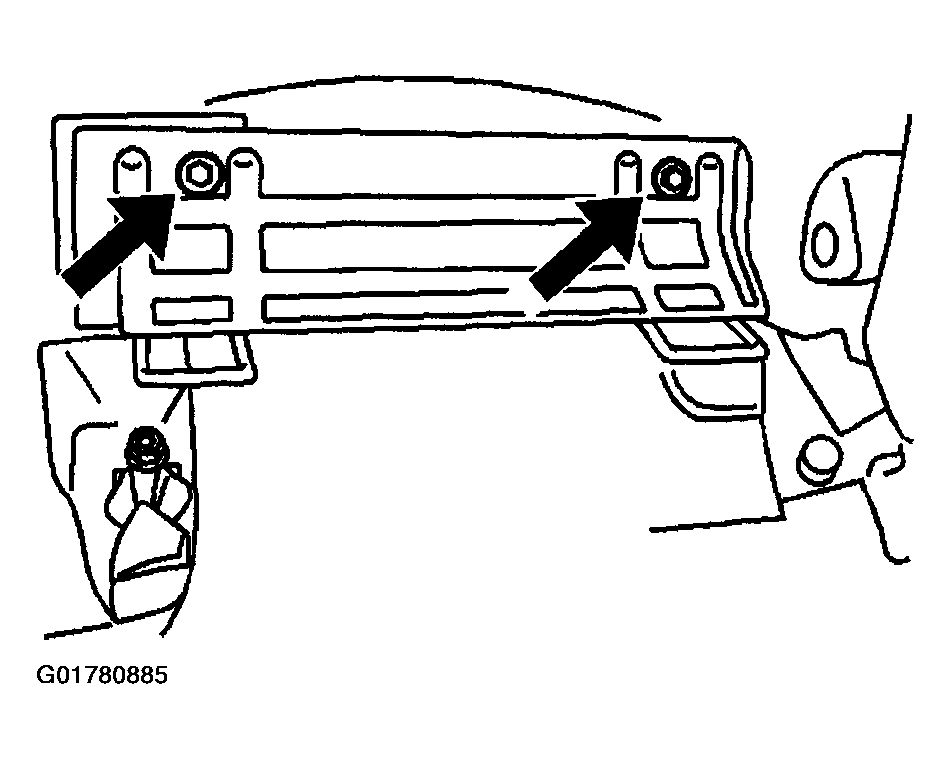

    Fig 1: Locating Child Seat Latch Bracket Bolts
    G01780885Courtesy of GENERAL MOTORS CORP.
