Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the child seat latch bracket in the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the bolts to the child seat latch bracket.

    Tighten

    Tighten the bolts to 42 N.m (31 lb ft).

  3. Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR .

    If equipped with a split folding rear seat back refer to SEAT BACK REPLACEMENT - REAR SPLIT FOLDING .

  4. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

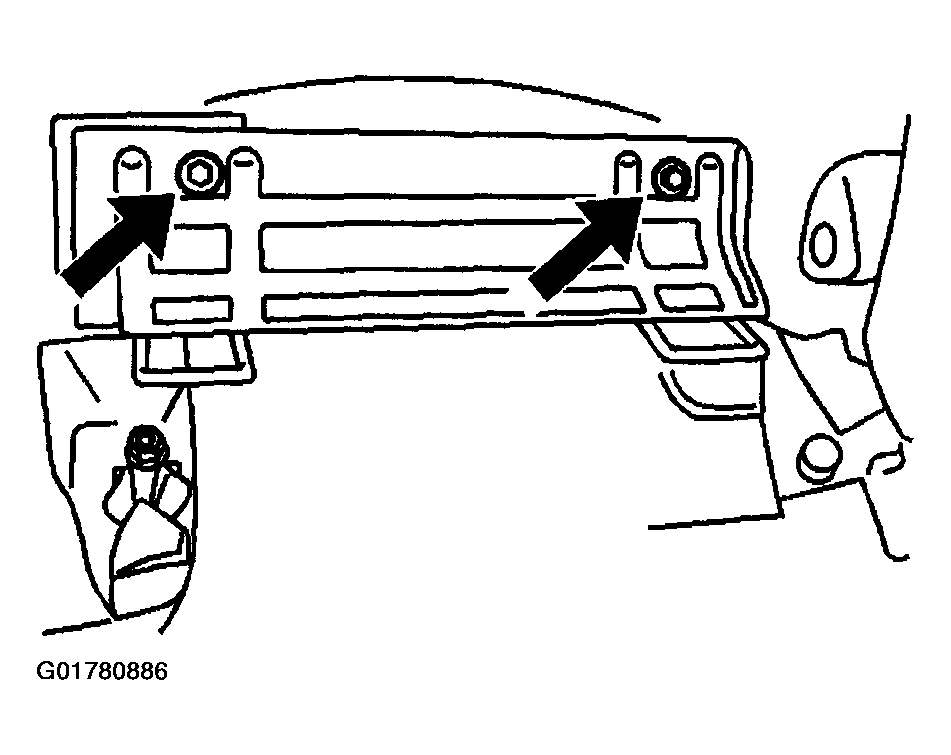

    Fig 1: Locating Child Seat Latch Bracket Bolts
    G01780886Courtesy of GENERAL MOTORS CORP.
