Rear Hoist Pads

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Position the (frame contact) rear hoist pads as follows:

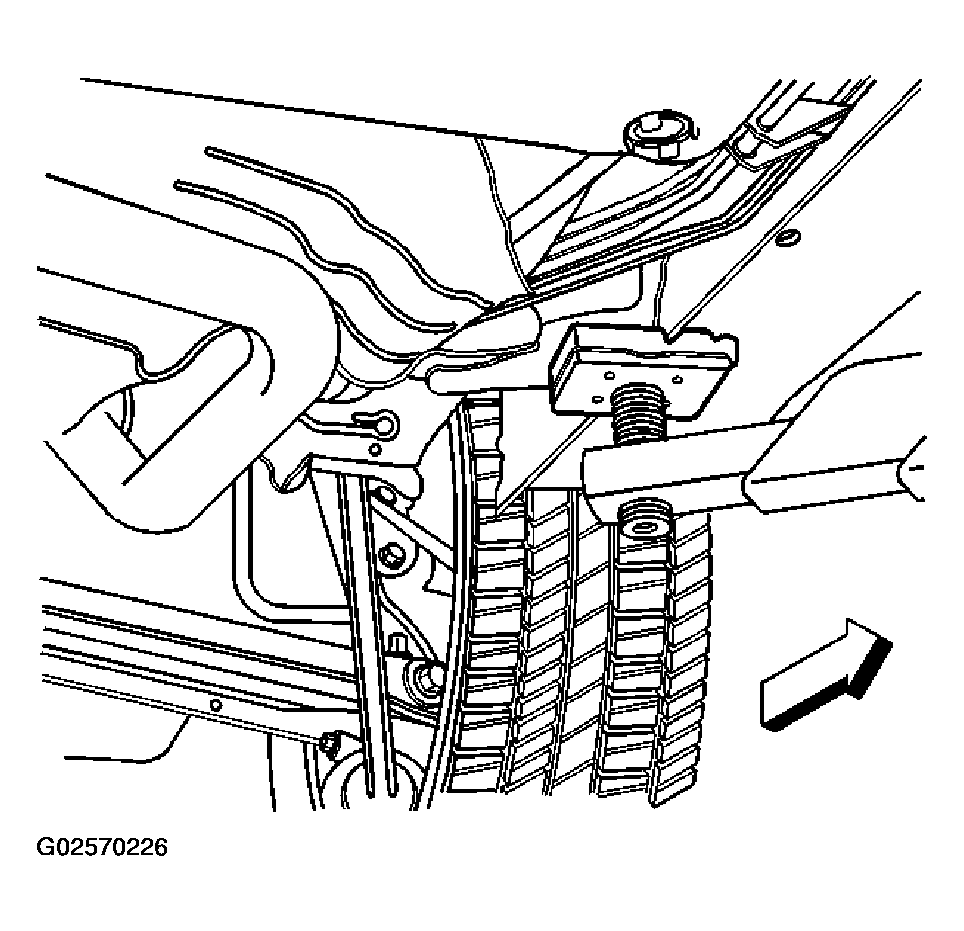

Fig 1: Rear Hoist Pad

Courtesy of GENERAL MOTORS CORP.

Important:

The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements.
The rear hoist pads must not contact the floor pan.
Under the rear frame rail shipping slot reinforcements.
The long sides of the pads perpendicular to the frame rails.
The outer edge of the pads aligned with the outer edge of the rear frame rail shipping slot reinforcements.
