Test Description

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3.  Tests the pump motor circuits of the BPMV for a short to the housing of the BPMV.

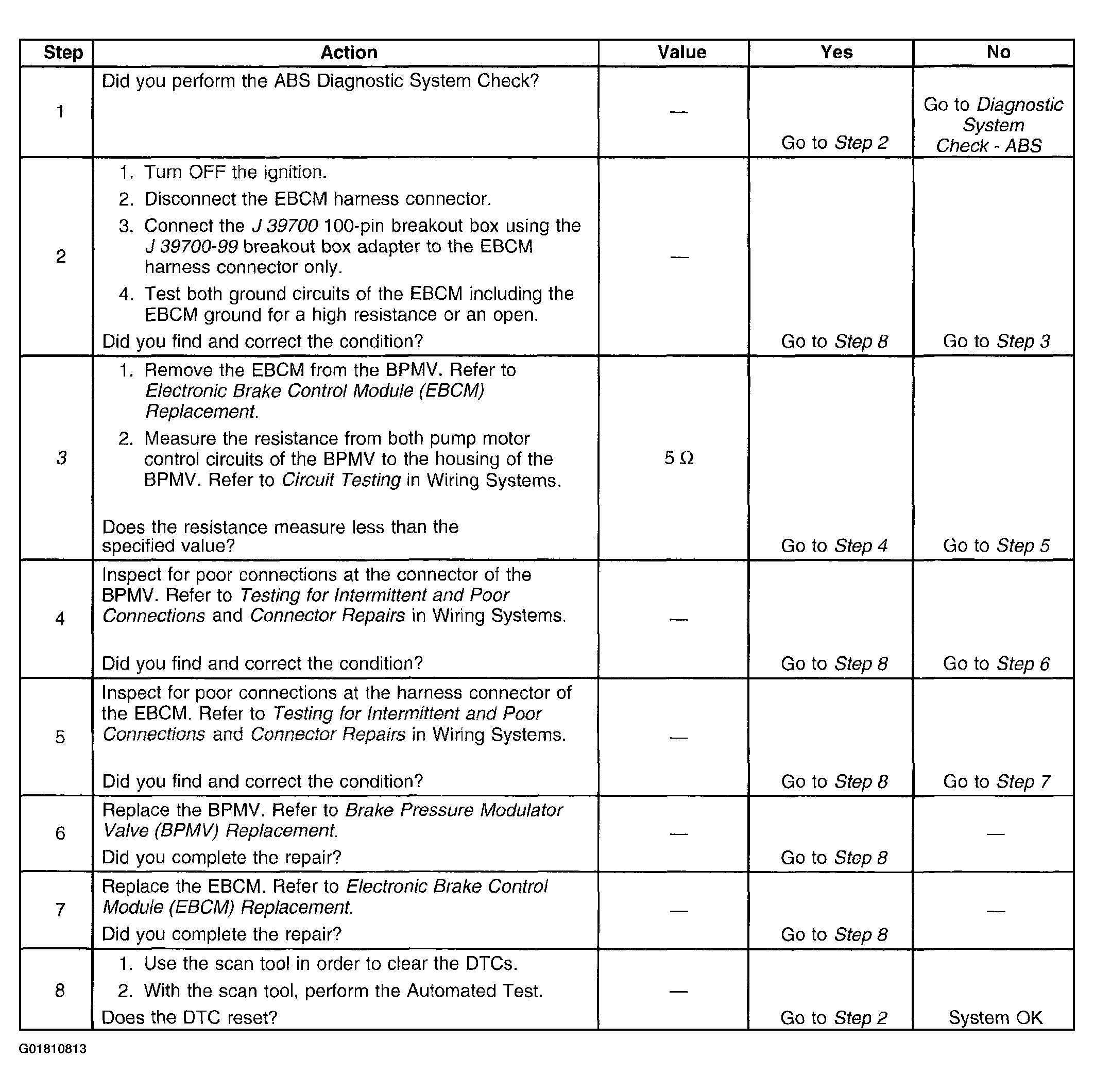

Fig 1: DTC C1217
G01810813Courtesy of GENERAL MOTORS CORP.
