Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat, if required. Refer to SEAT REPLACEMENT - REAR (EXTENDED CAB W/4TH DOOR) , SEAT REPLACEMENT - REAR (EXTENDED CAB) , or SEAT REPLACEMENT - REAR (60/40 SPLIT) .
  2. Remove the rear quarter trim panel.
  3. Remove the rear seat belt to body bolts.
  4. Remove the rear seat belt retractor to body bolt (1).

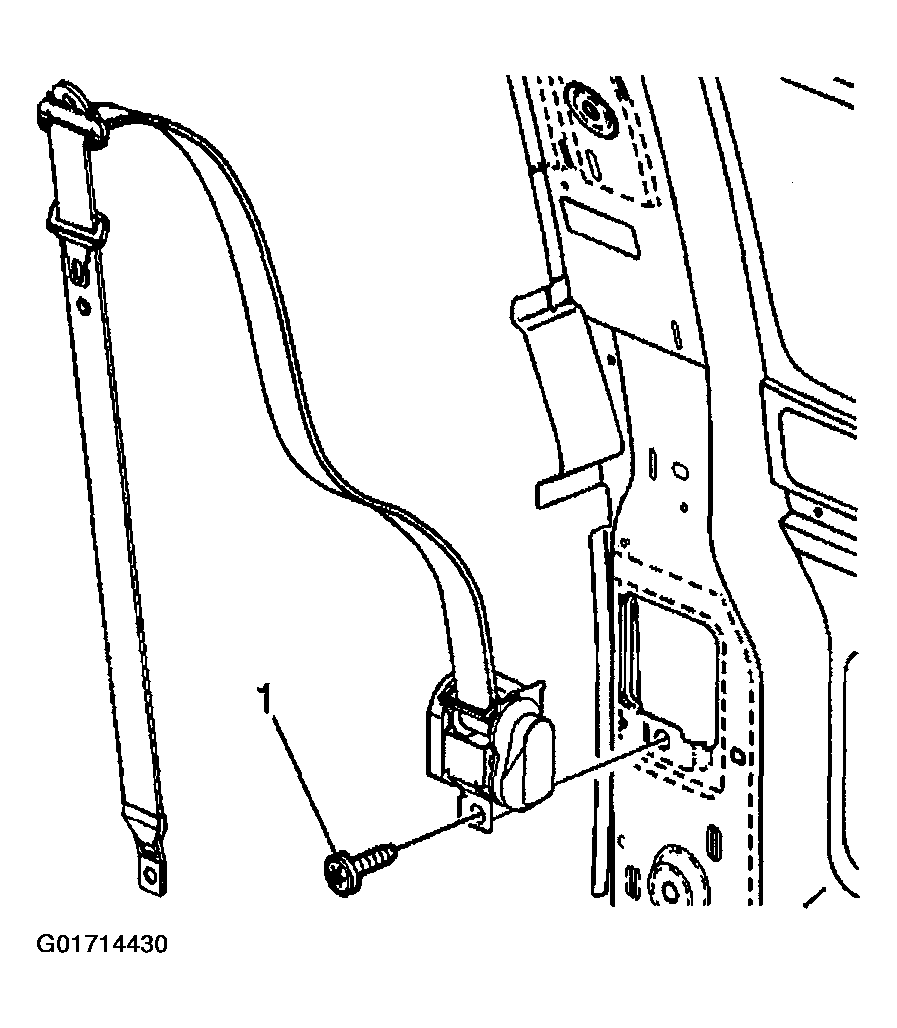

    5. Fig 1: Rear Seat Belt Retractor To Body Bolt
    G01714430Courtesy of GENERAL MOTORS CORP.
  5. Remove the retractor from the vehicle.
