Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the battery negative terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Disconnect the auxiliary battery positive and negative cables. Refer to Battery Positive Cable Replacement - Auxiliary  and Battery Negative Cable Replacement - Auxiliary  .
  4. Remove the auxiliary battery hold-down retainer bolt.
  5. Remove the auxiliary battery from the auxiliary battery tray.

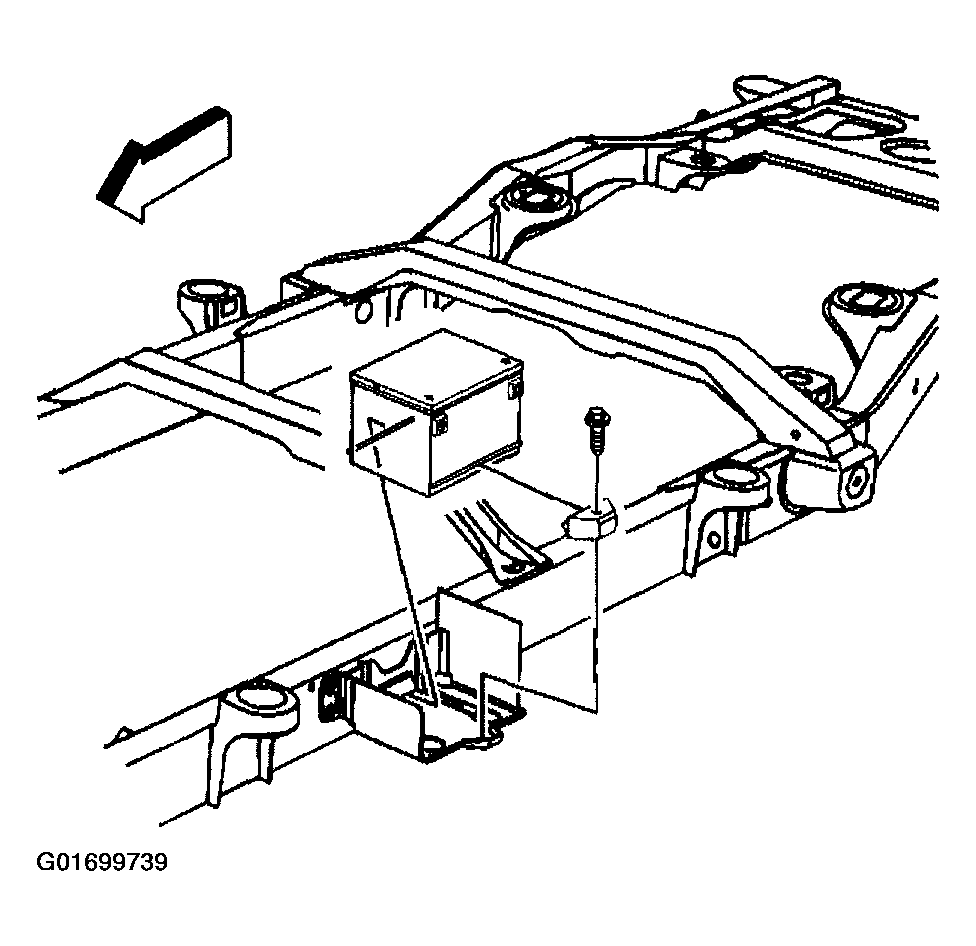

    6. Fig 1: Removing Auxiliary Battery
    G01699739Courtesy of GENERAL MOTORS CORP.
  6. Remove the auxiliary battery hold-down tray bolts.
  7. Remove the auxiliary battery tray from the vehicle.

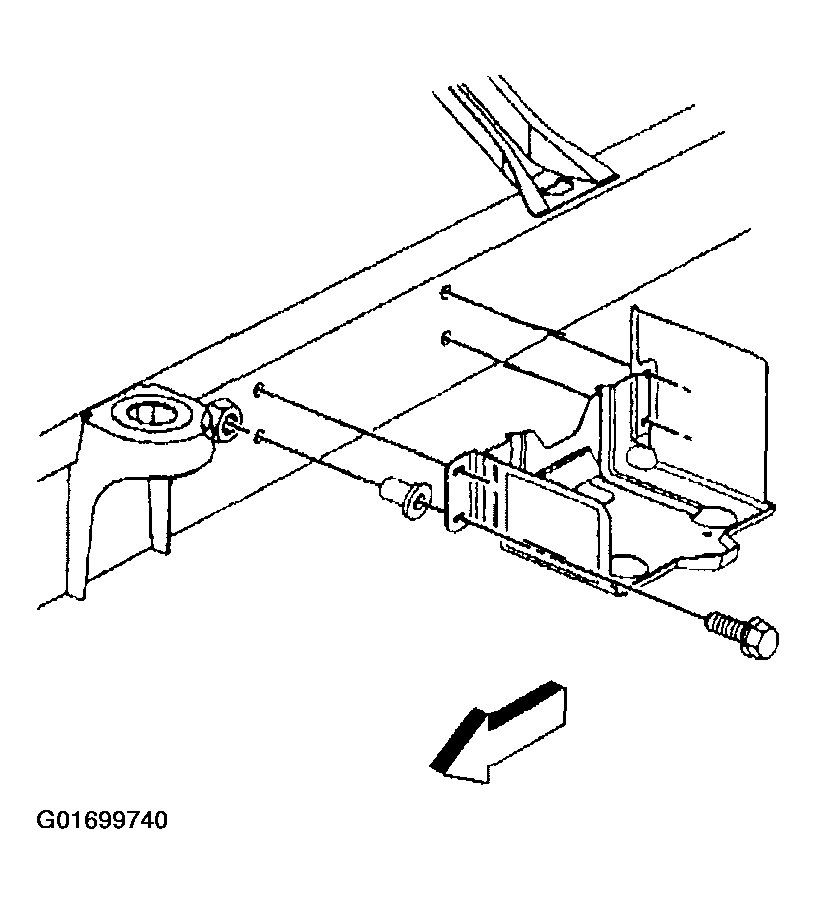

    Fig 2: Removing Auxiliary Battery Tray
    G01699740Courtesy of GENERAL MOTORS CORP.
