Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the negative battery terminal. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Disconnect the auxiliary negative cable from the battery terminal.
  4. Disconnect the auxiliary battery positive cable from the battery terminal.
    5. Fig 1: Disconnecting Auxiliary Battery Negative & Positive Cables From Battery
    G01699729Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery hold down retaining bolt.
  6. Remove the battery from the tray.

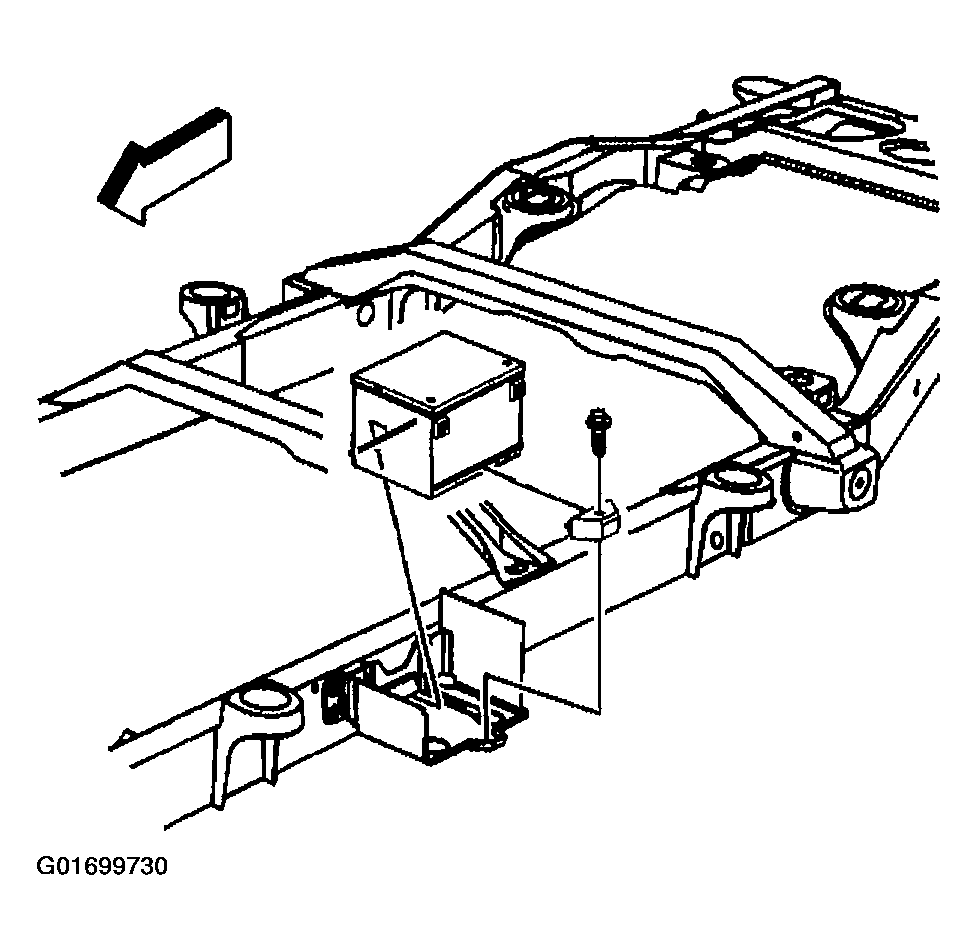

    Fig 2: Removing Battery
    G01699730Courtesy of GENERAL MOTORS CORP.
