Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable from the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery negative cable from the auxiliary battery.
  3. Disconnect the battery positive cable from the junction block.
  4. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .

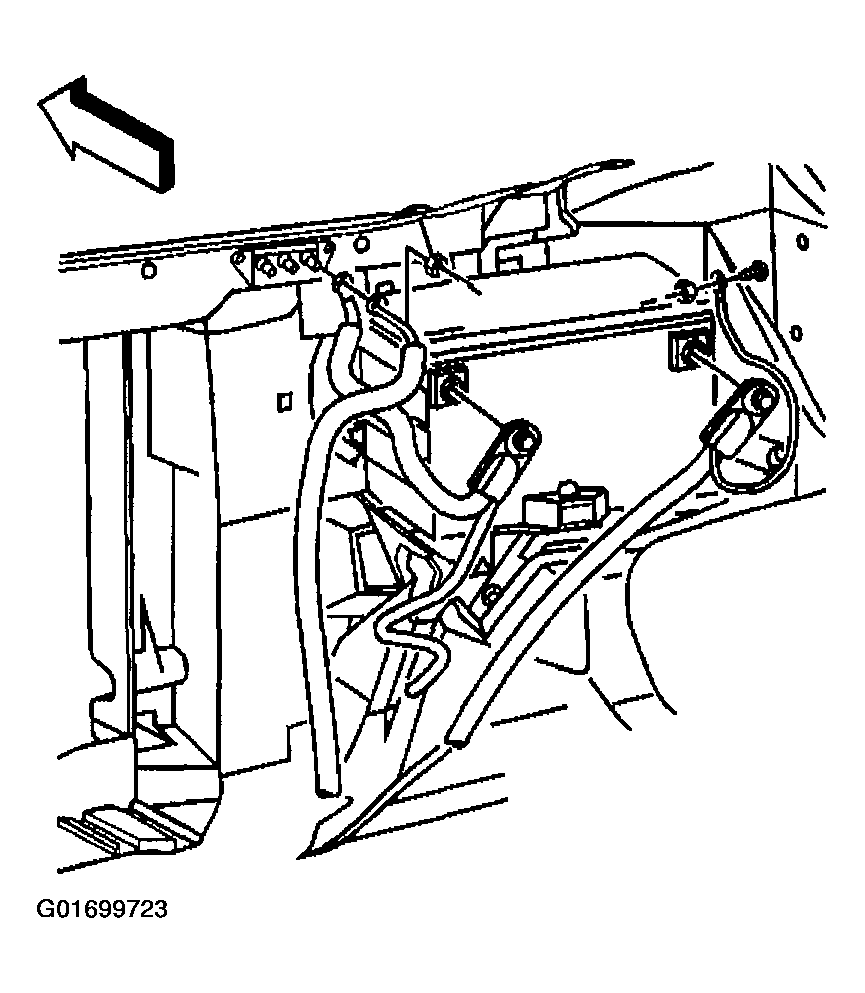

    Fig 1: Disconnecting Battery Negative & Positive Cables
    G01699723Courtesy of GENERAL MOTORS CORP.
  5. Remove the battery positive cable retainers from the frame.
  6. Disconnect the battery positive cable from the auxiliary battery.
  7. Remove the battery positive cable from the vehicle.

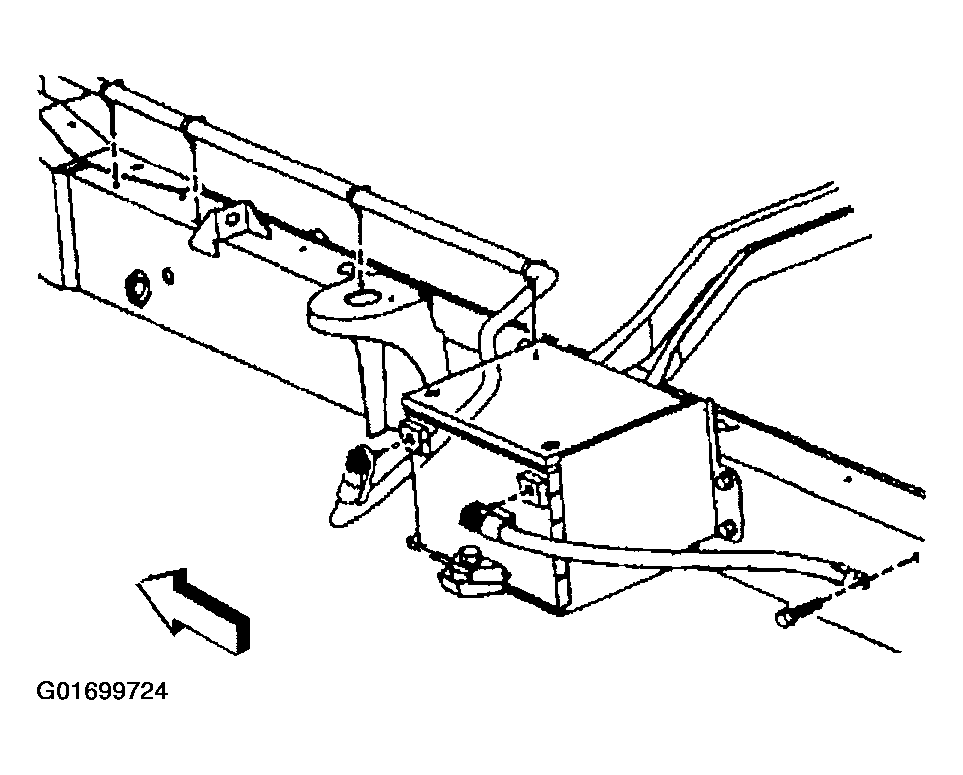

    Fig 2: Removing Battery Positive Cable
    G01699724Courtesy of GENERAL MOTORS CORP.
