Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the battery positive cable to the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Connect the battery positive cable to the auxiliary battery.

    Tighten

    Tighten the auxiliary battery positive cable to 15 N.m (11 lb ft).

  3. Install the battery positive cable retainers to the frame.
  4. Lower the vehicle.

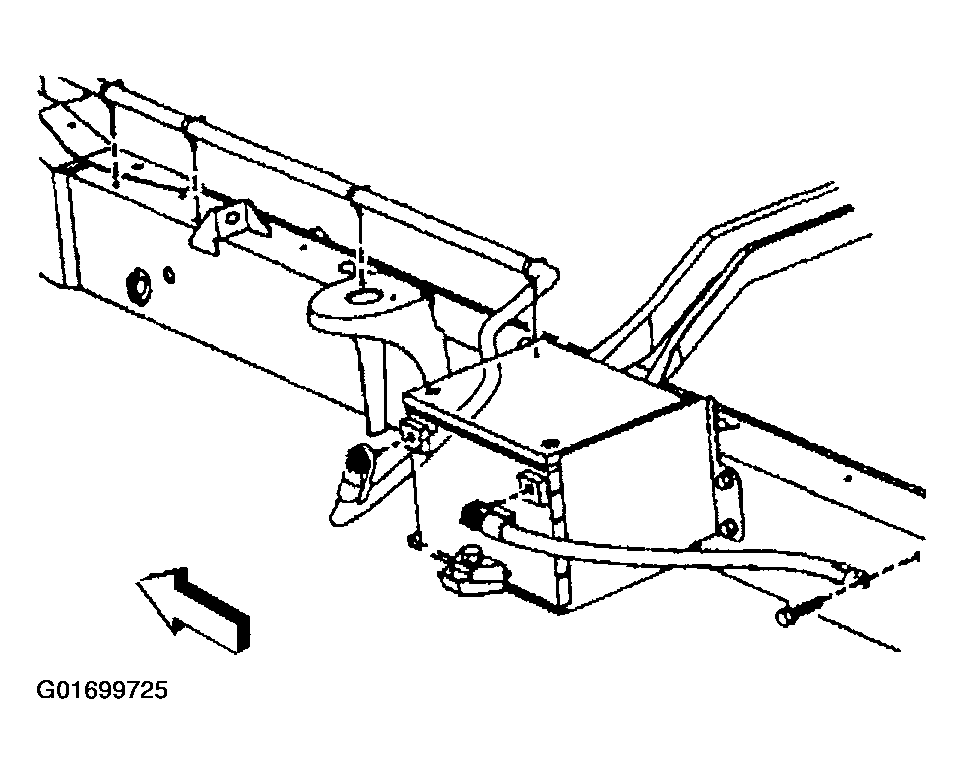

    Fig 1: Installing Battery Positive Cable Retainers To Frame
    G01699725Courtesy of GENERAL MOTORS CORP.
  5. Connect the battery positive cable to the junction block.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

  6. Connect the battery negative cable to the auxiliary battery.

    Tighten

    Tighten the bolt to 15 N.m (11 lb ft).

  7. Connect the battery negative cable to the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .

    Tighten

    Tighten the bolt to 17 N.m (13 lb ft).

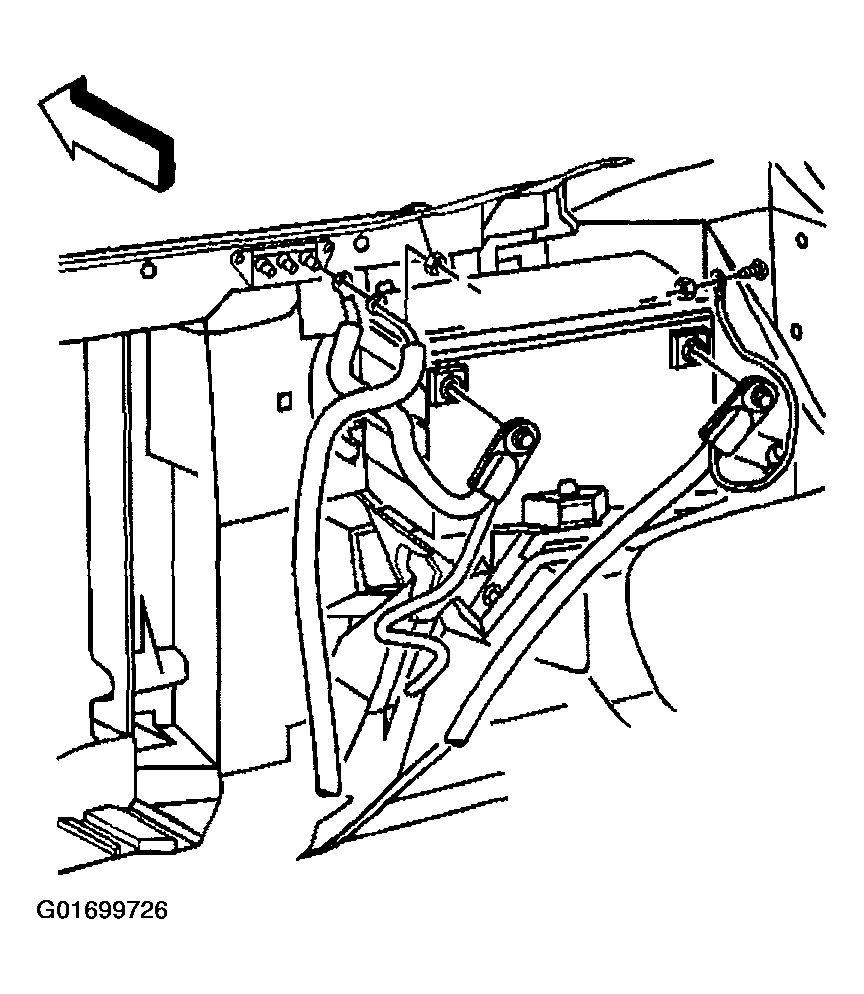

    Fig 2: Connecting Battery Positive & Negative Cables
    G01699726Courtesy of GENERAL MOTORS CORP.
