Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Disconnect the battery negative cable from the auxiliary battery. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  3. Disconnect the negative ground leads from the frame.
  4. Remove the battery negative cable from the vehicle.

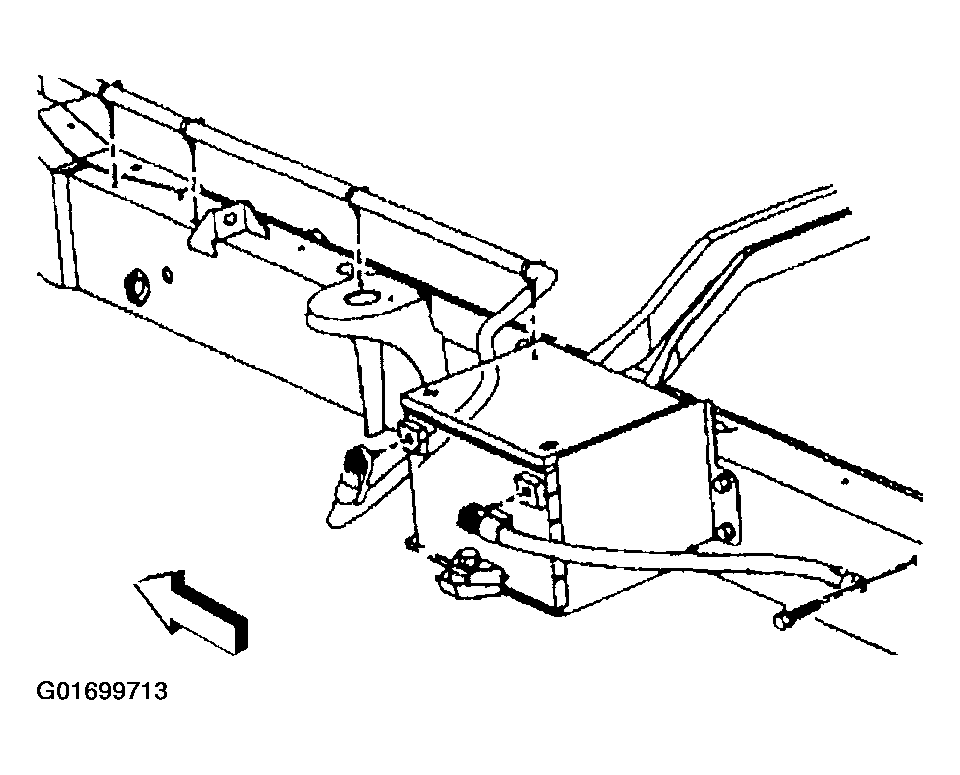

    Fig 1: Removing Battery Negative Cable From Vehicle
    G01699713Courtesy of GENERAL MOTORS CORP.
