Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn off all the lamps and accessories.
  2. Turn the ignition OFF.
  3. Remove the battery ground (negative) cable and bolt from the battery.

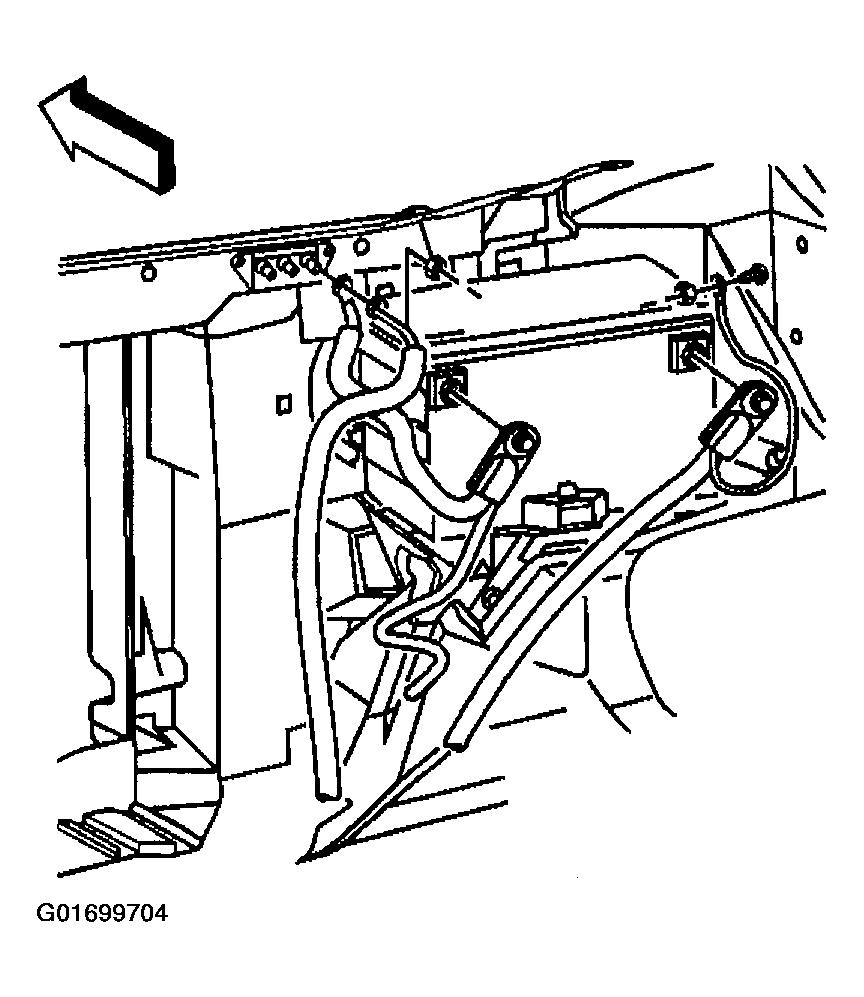

    Fig 1: Removing Battery Ground (Negative) Cable From Battery
    G01699704Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery ground (negative) cable and bolt from the battery for auxiliary battery.

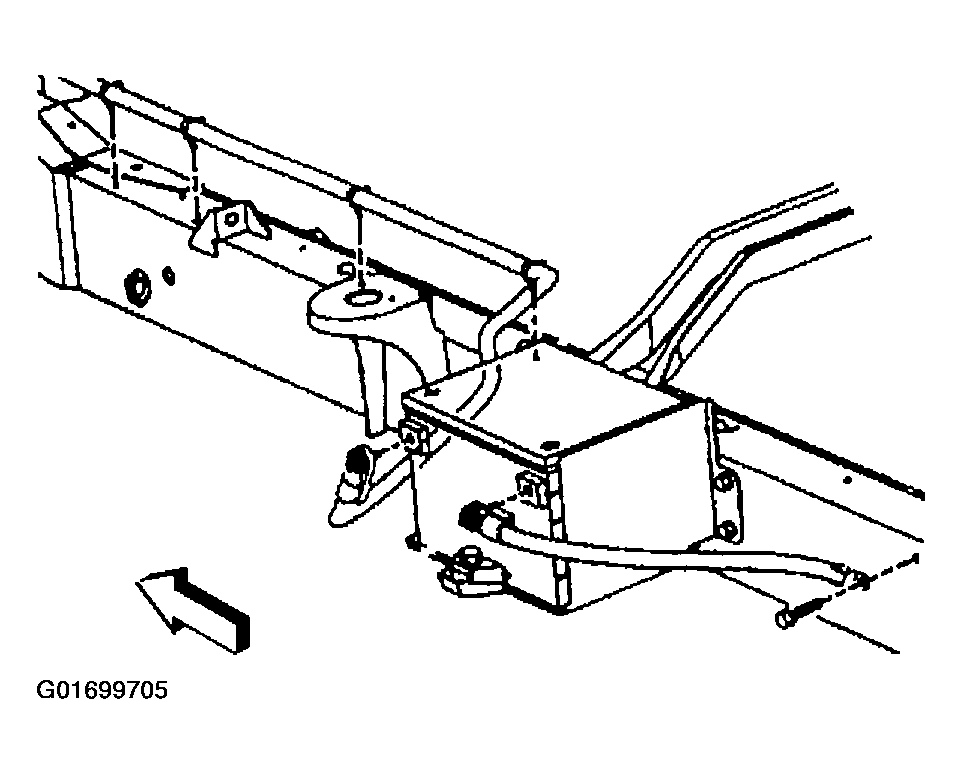

    Fig 2: Removing Battery Ground (Negative) Cable From Auxiliary Battery
    G01699705Courtesy of GENERAL MOTORS CORP.
