Outside Mirror Schematics

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

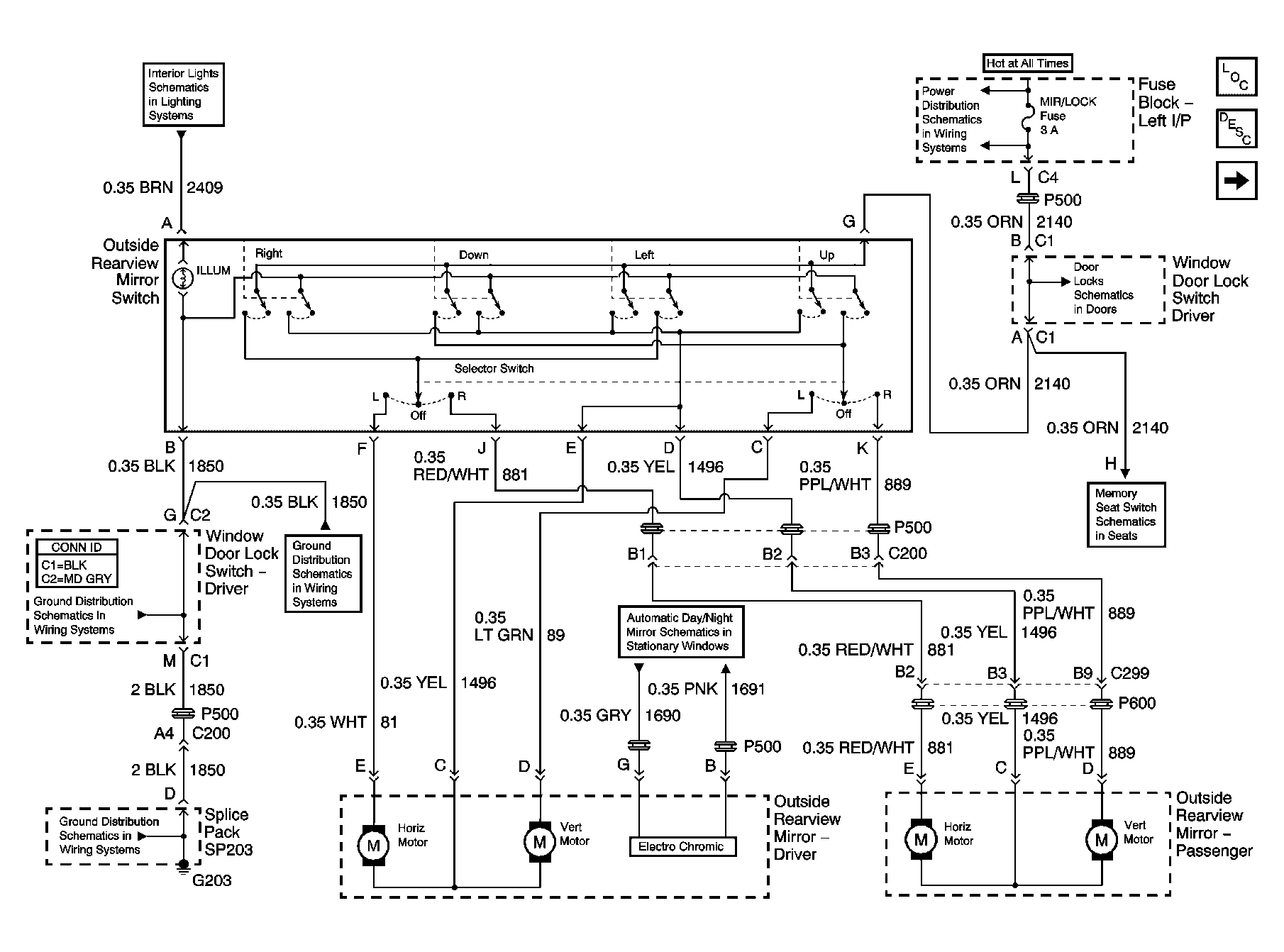

Fig 1: Outside Rearview Mirror Switch and Motors-Except Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

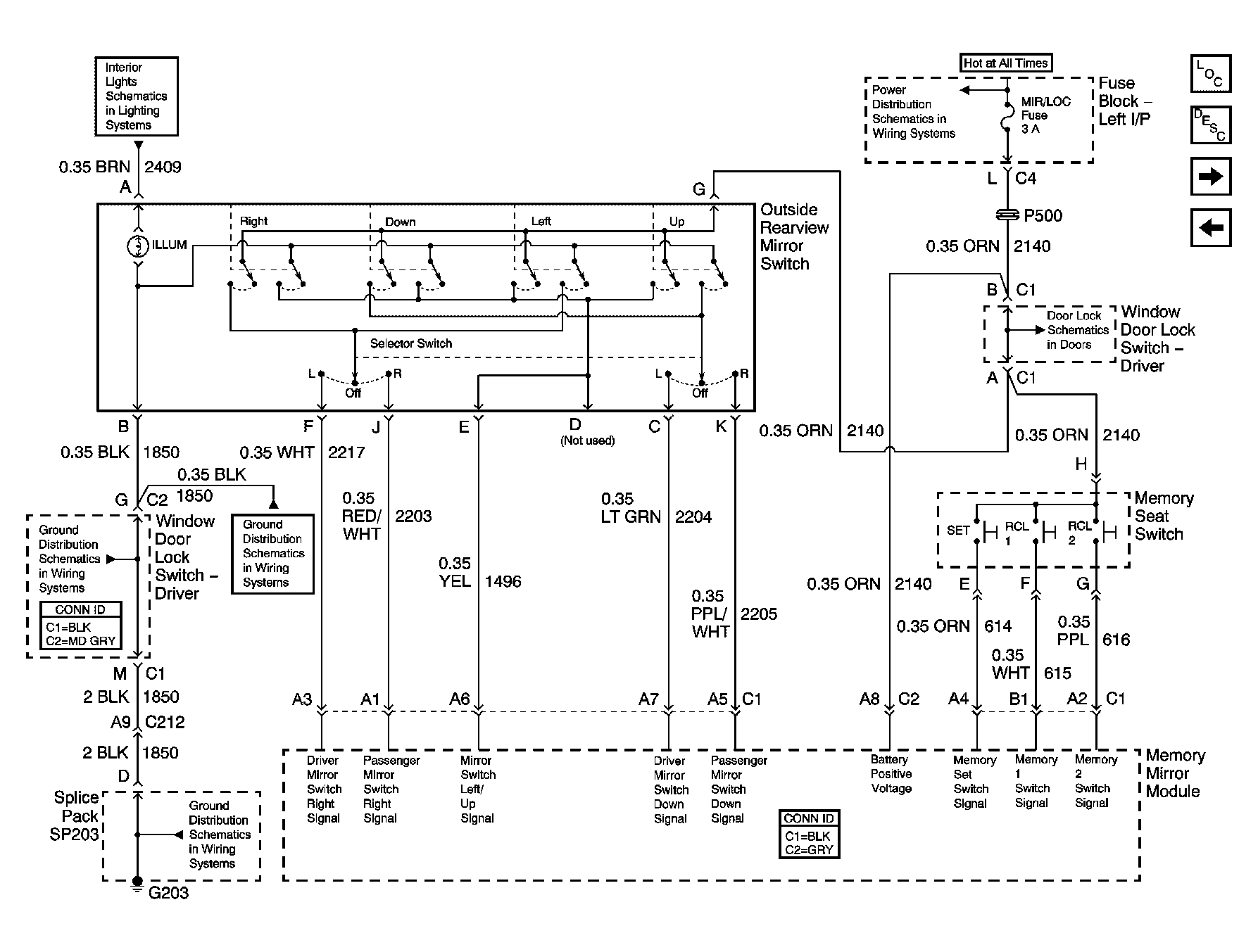

Fig 2: Power, Outside Rearview Mirror Switch and Memory Seat Switch-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

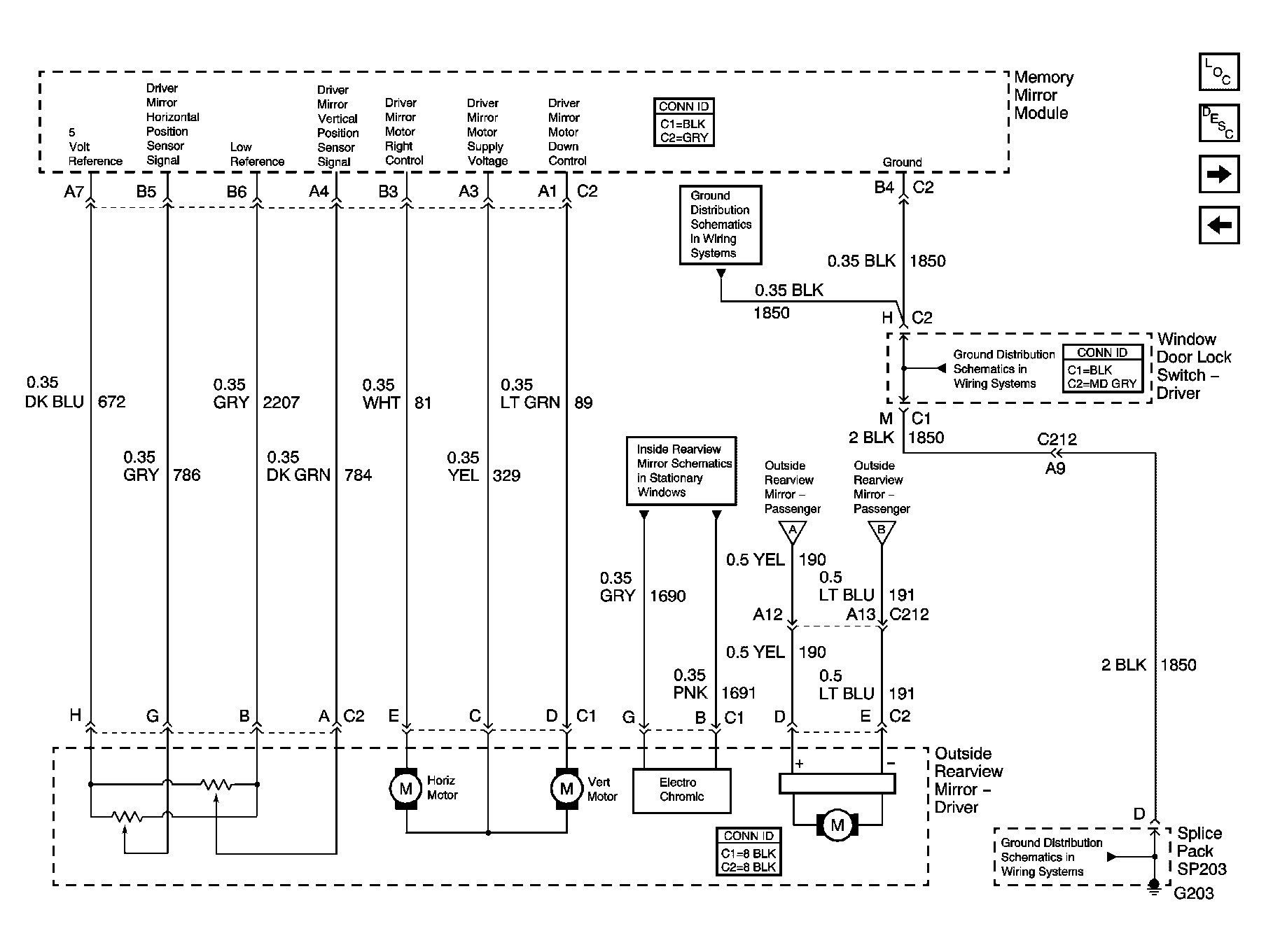

Fig 3: Outside Rearview Mirror - Driver and Memory Mirror Module-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

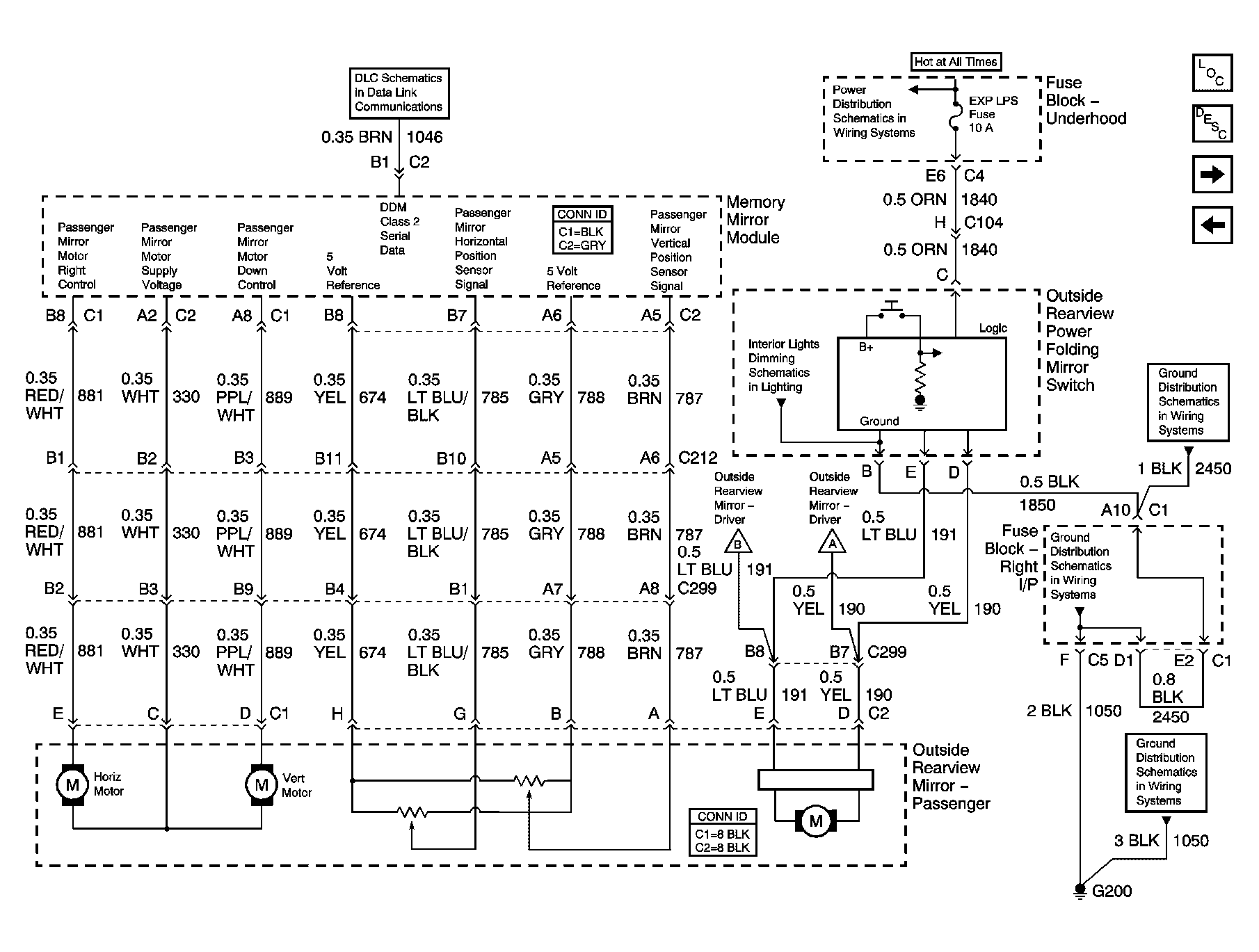

Fig 4: Outside Rearview Mirror - Passenger and Outside Rearview Power Folding Mirror Switch-Escalade Schematic

Courtesy of GENERAL MOTORS CORP.

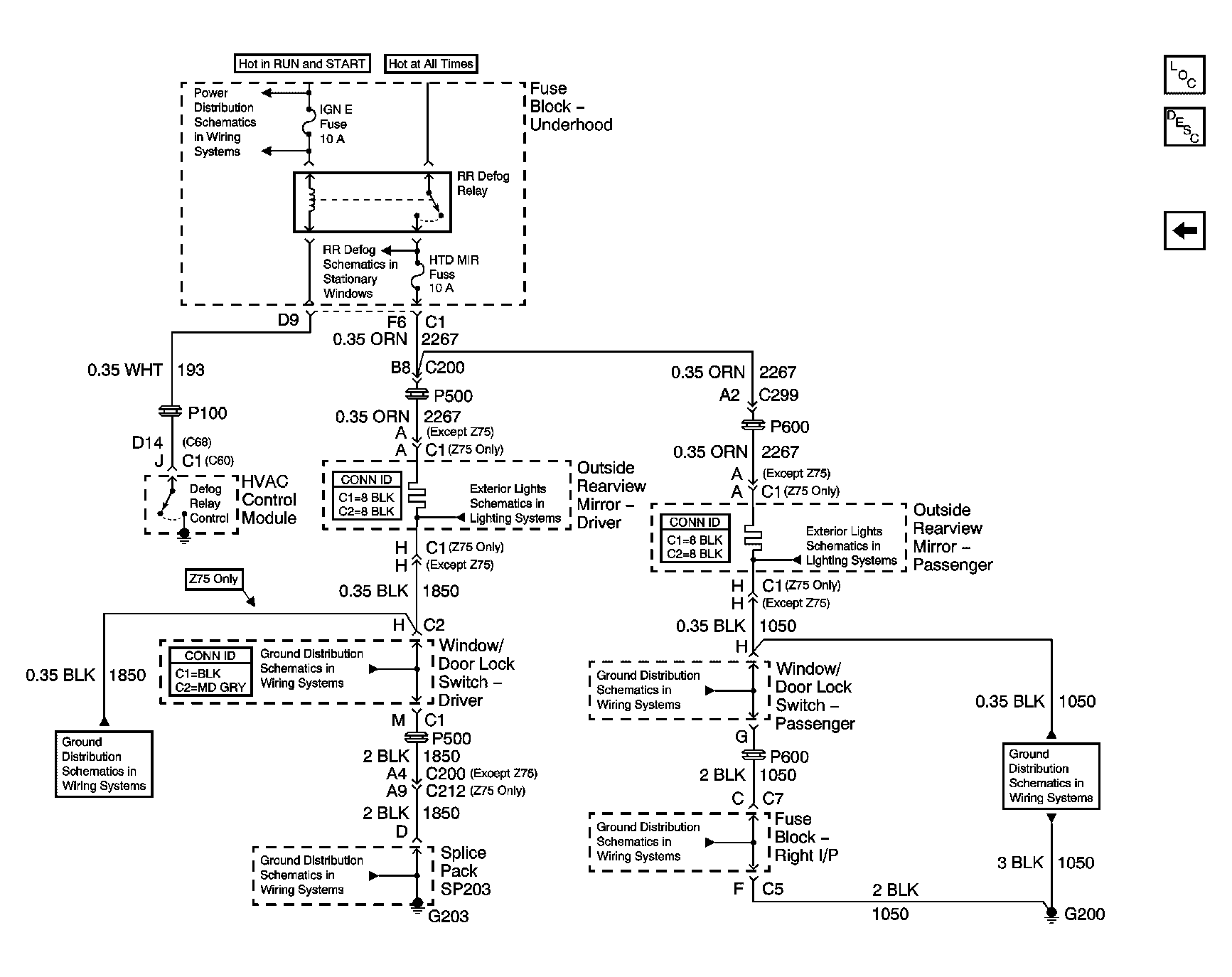

Fig 5: Outside Rearview Mirror Heater Control Schematic

Courtesy of GENERAL MOTORS CORP.
