Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the window handle, if equipped. Refer to Window Handle Replacement .
  3. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  4. Remove the upper extension of the trim panel. Refer to Trim Panel Replacement - Upper Extension .
  5. Remove the manual lock lever from the trim panel using a flat bladed tool.
  6. Remove the trim panel screws.

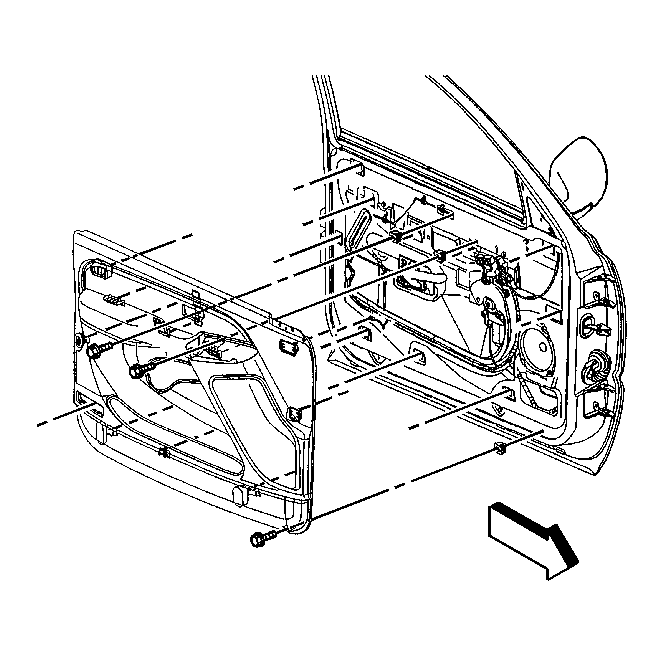

    7. Fig 1: Side Front Door Trim Panel
    GM348452Courtesy of GENERAL MOTORS CORP.
  7. Remove the courtesy lamp, if equipped. Refer to COURTESY LAMP/REFLECTOR REPLACEMENT - DOOR .
  8. Remove the trim panel from the door. Carefully slide the trim panel up in order to release the retainers from the door.
  9. Disconnect the electrical connectors.
