Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using pliers, gently squeeze the tangs of the step pad.

    Push the tangs through the slots in the bumper.

  2. Remove the step pad (1) from the bumper (4).

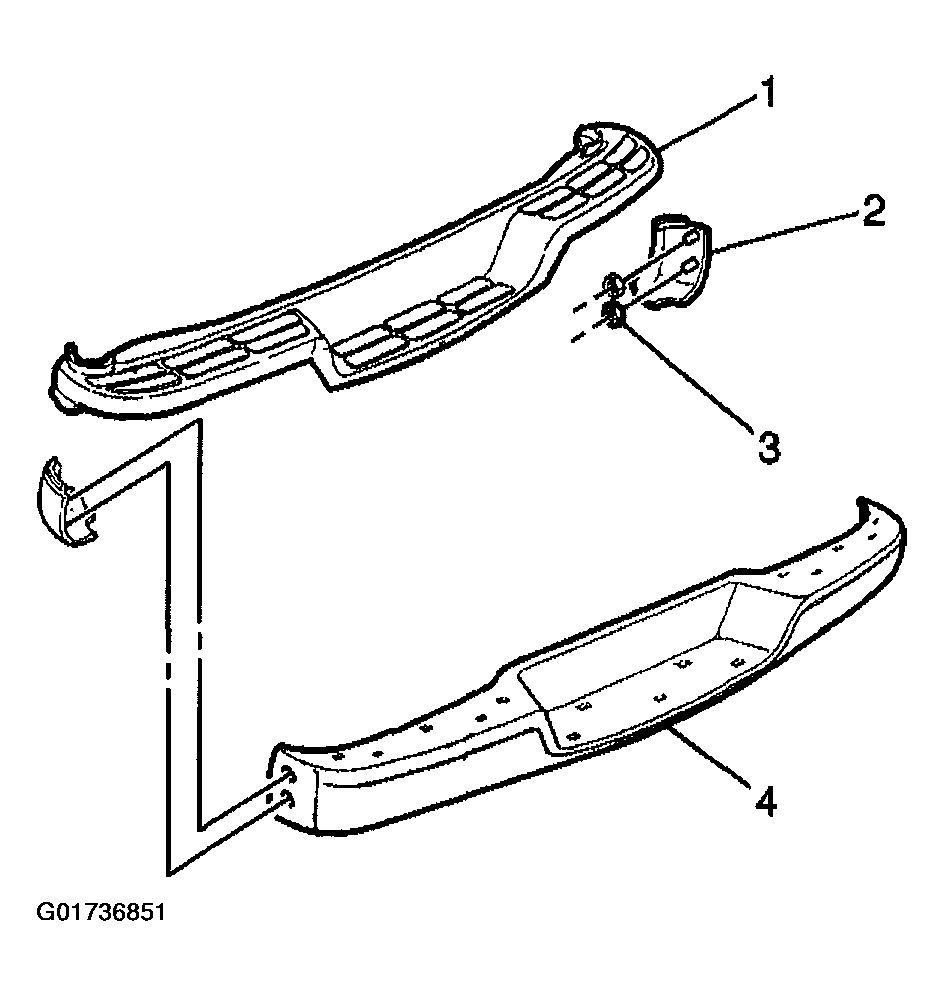

    Fig 1: Removing Step Pad From Bumper
    G01736851Courtesy of GENERAL MOTORS CORP.
