Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Install the step pad (1) on the bumper (4).
Align the tangs on the step pad with the slots in the bumper.
Using a rubber mallet, set the tangs in place starting at the center of the step pad and work toward each end of the pad.

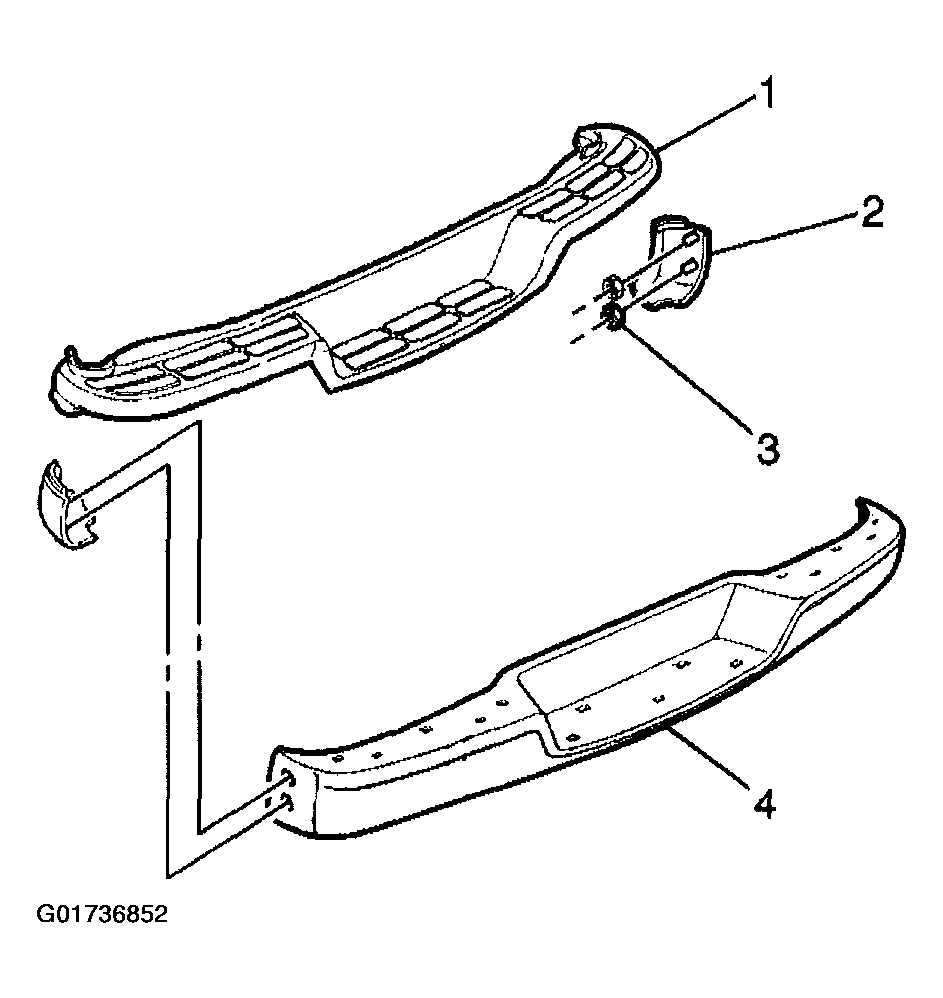

Fig 1: Installing Step Pad On Bumper
Courtesy of GENERAL MOTORS CORP.
