Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper from the vehicle. Refer to Bracket Replacement - Front Bumper .
  2. Using pliers, gently squeeze the tangs on the molding.

    Push the tangs through the slots in the bumper.

  3. Remove the front bumper step pad (1) from the bumper.

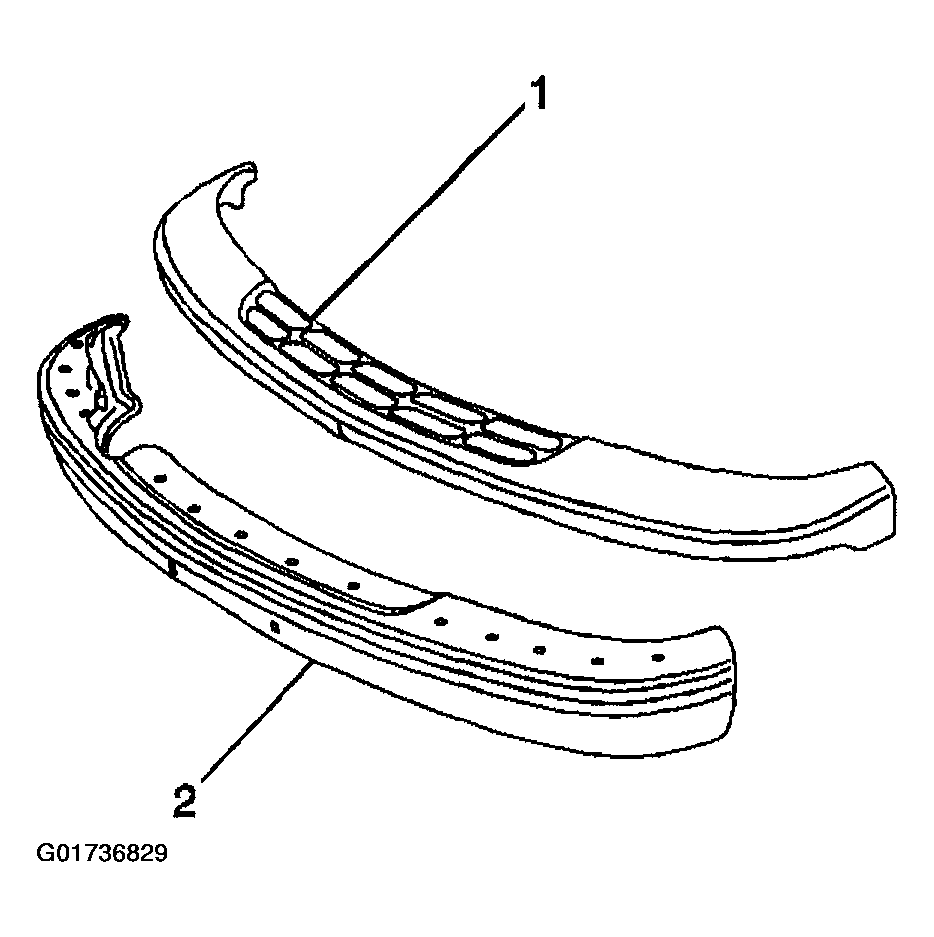

    Fig 1: Removing Front Bumper Step Pad
    G01736829Courtesy of GENERAL MOTORS CORP.
