Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the tangs on the front bumper step pad (1) with the slots in the bumper.
  2. Using a rubber mallet, set the tangs in place starting at the center of the front bumper step pad and work toward each end of the pad.
  3. Install the front bumper to the vehicle. Refer to Bracket Replacement - Front Bumper .

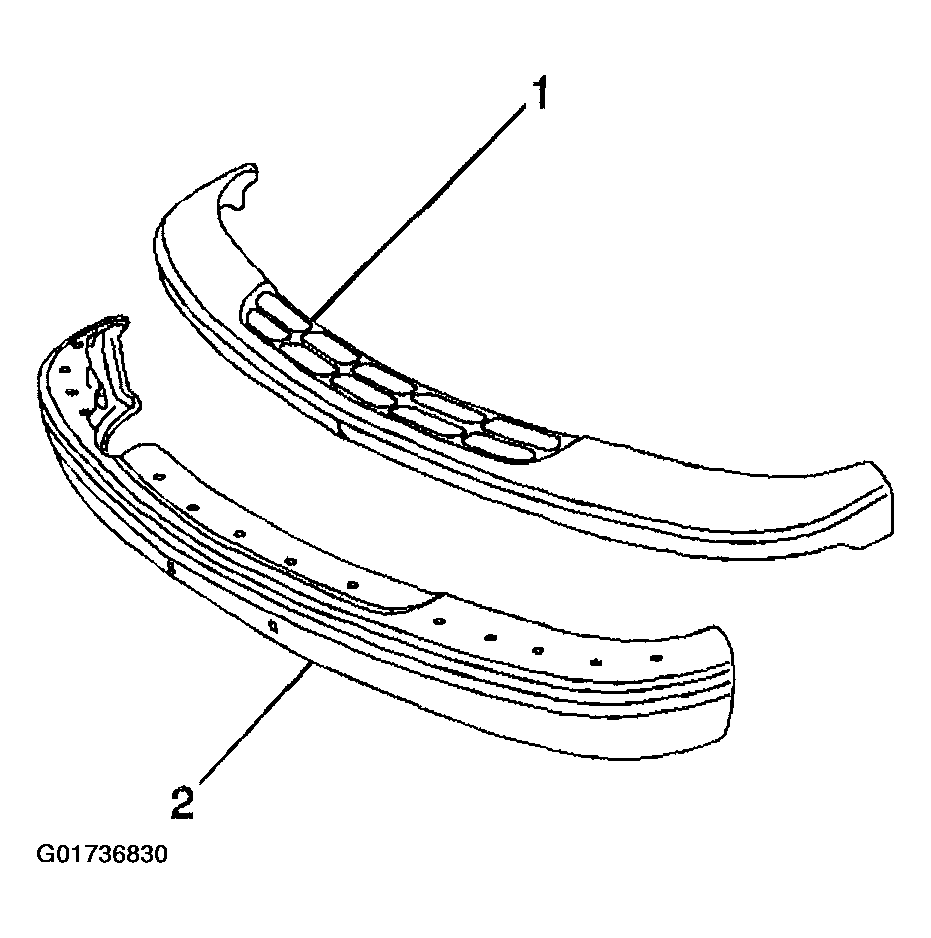

    Fig 1: Installing Front Bumper Step Pad
    G01736830Courtesy of GENERAL MOTORS CORP.
