Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts (2) that retain the step pad extension to the bumper.
  2. Remove the step pad extension from the bumper.

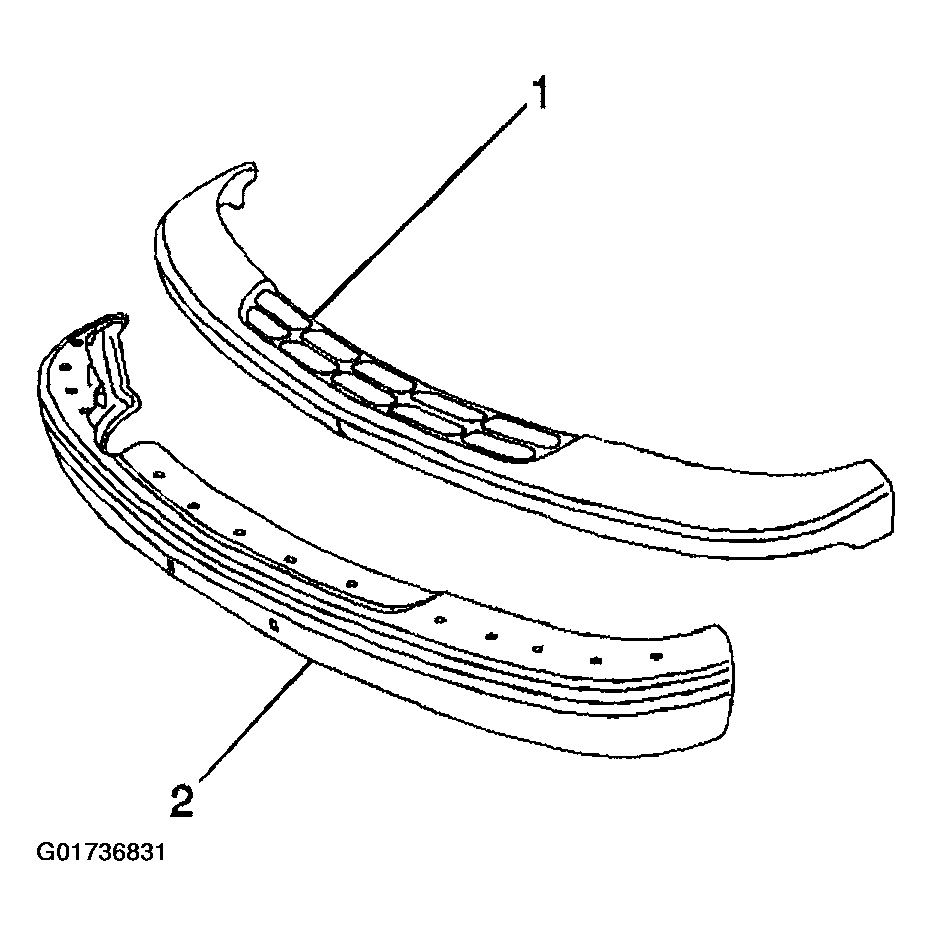

    Fig 1: Removing Step Pad Extension
    G01736831Courtesy of GENERAL MOTORS CORP.
