Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
- Install the front bumper step pad extensions to the front bumper impact bar, if equipped. Refer to Step Pad Extension Replacement - Front Bumper .
- Install the front bumper step pad to the bumper. Refer to Step Pad Replacement - Front Bumper .
- Install the front bumper impact bar brackets (3) to the front bumper and the front bumper reinforcement. Refer to Bracket Replacement - Front Bumper .
- Install the front bumper to the vehicle.CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

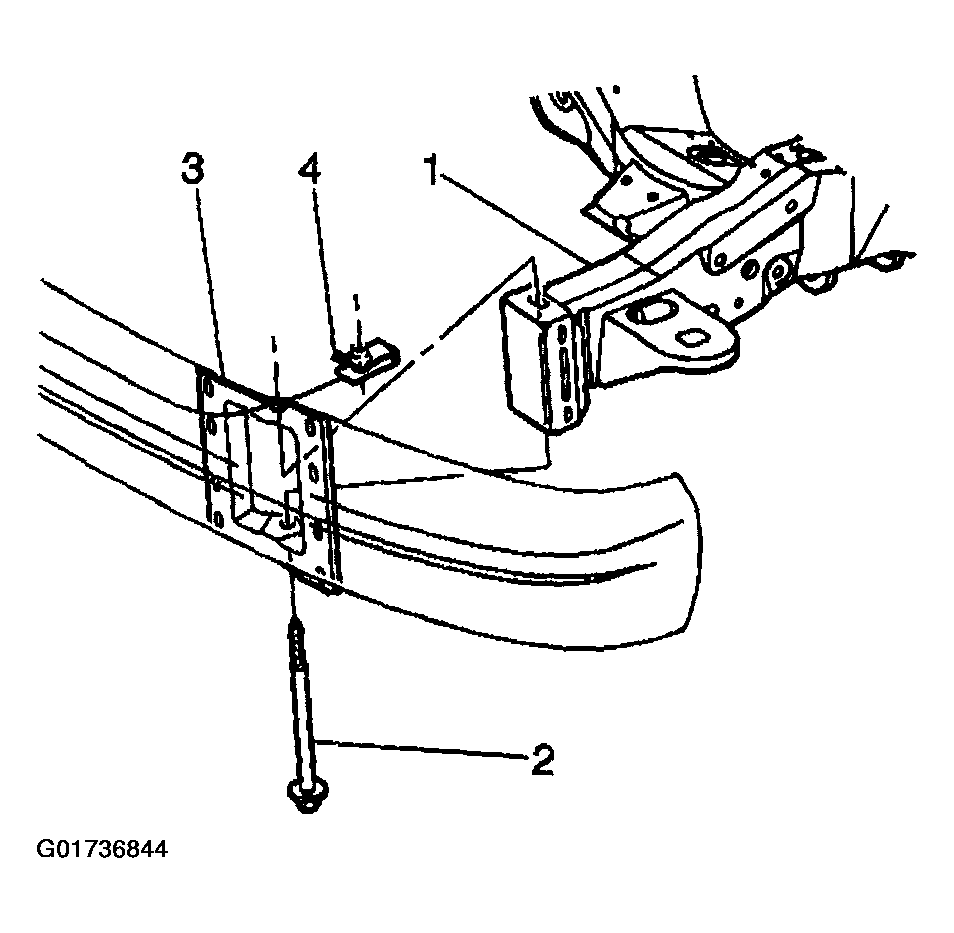

- Install the front bumper bracket retaining bolts (2) to the frame (1).
Tighten
Tighten the bolts that retain the front bumper bracket to the frame to 50 N.m (37 lb ft).
