Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear step pad from the vehicle. Refer to Step Pad Replacement - Rear Bumper .
  2. Remove the bolts that attach the rear bumper fascia (1) to the impact bar (2).
  3. Remove the rear bumper fascia from the vehicle.
  4. Remove the bolts that attach the rear bumper fascia impact bar to the vehicle, if required.

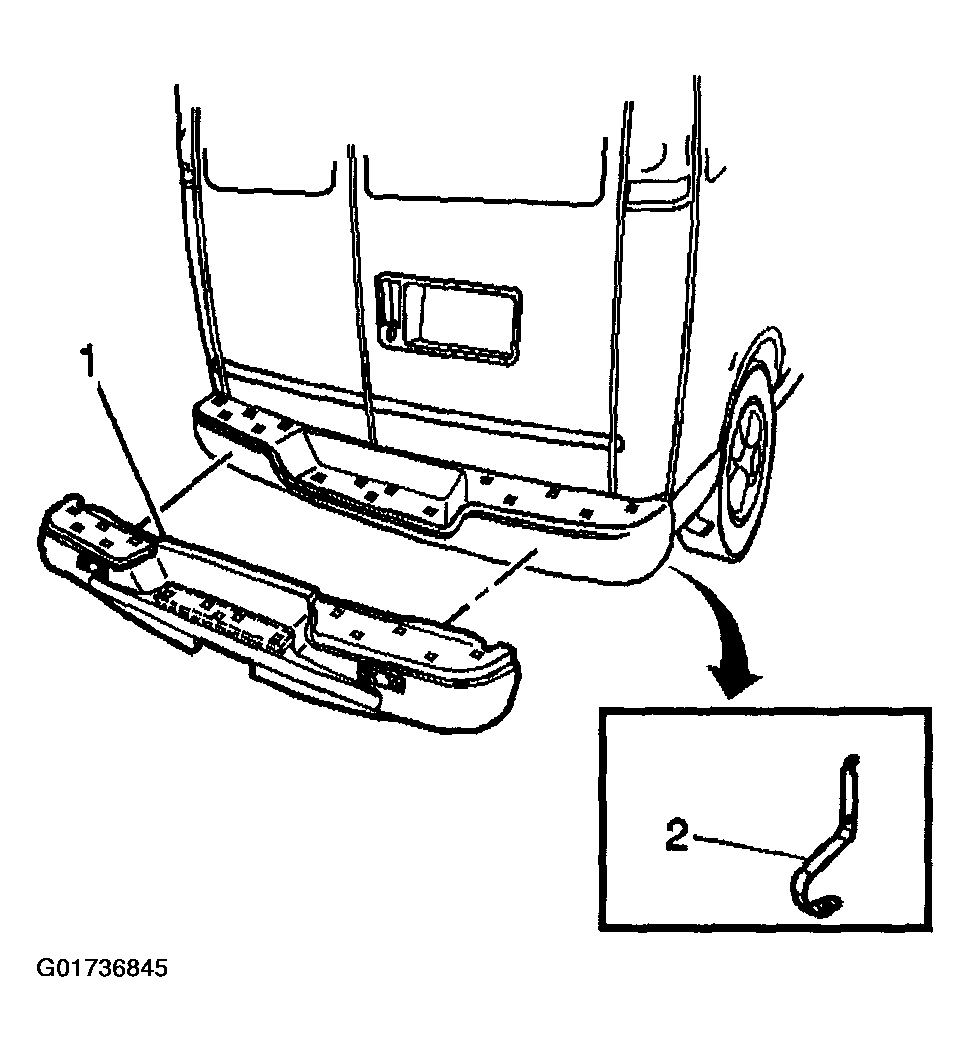

    Fig 1: Removing Rear Bumper Fascia
    G01736845Courtesy of GENERAL MOTORS CORP.
