Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the location of the fasteners and the brackets to the bumper.
  2. Remove the bolts (2) retaining the bumper brackets to the frame.
  3. Remove the bumper from the vehicle.

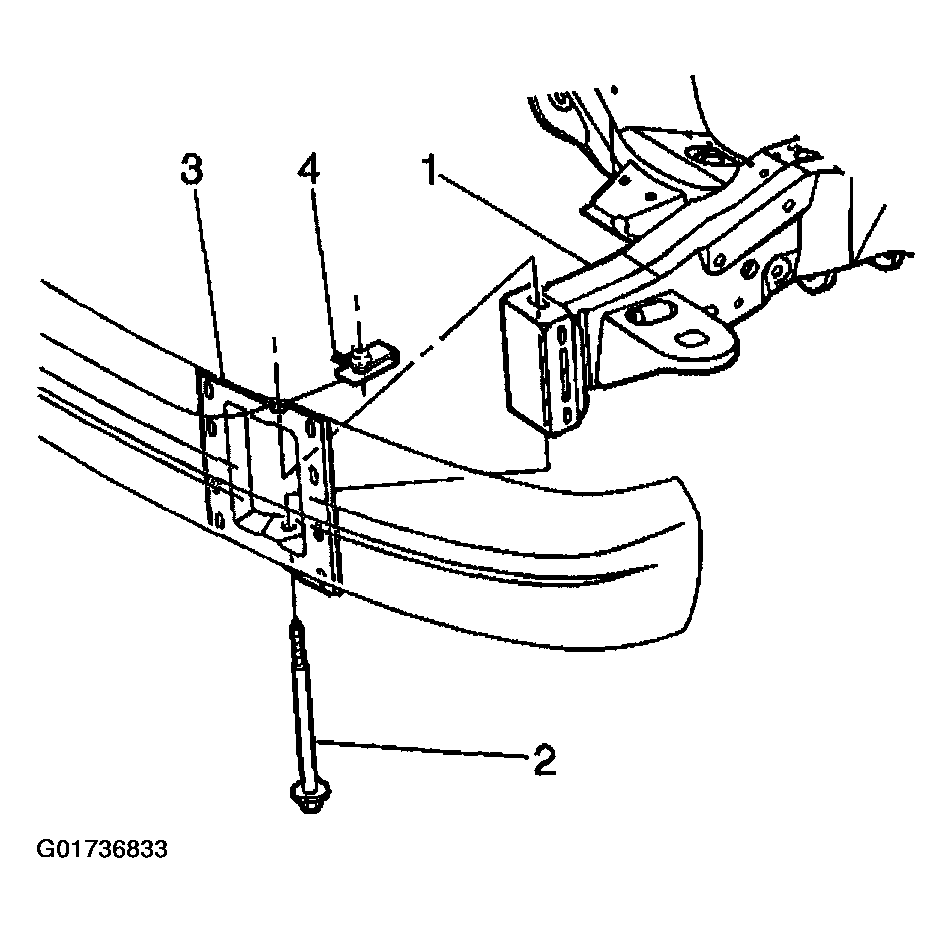

    Fig 1: Removing Bolts Retaining Bumper Brackets To Frame
    G01736833Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts retaining the impact bar (3) to the front bumper.
  5. Remove the front impact bar (3) from the bumper.

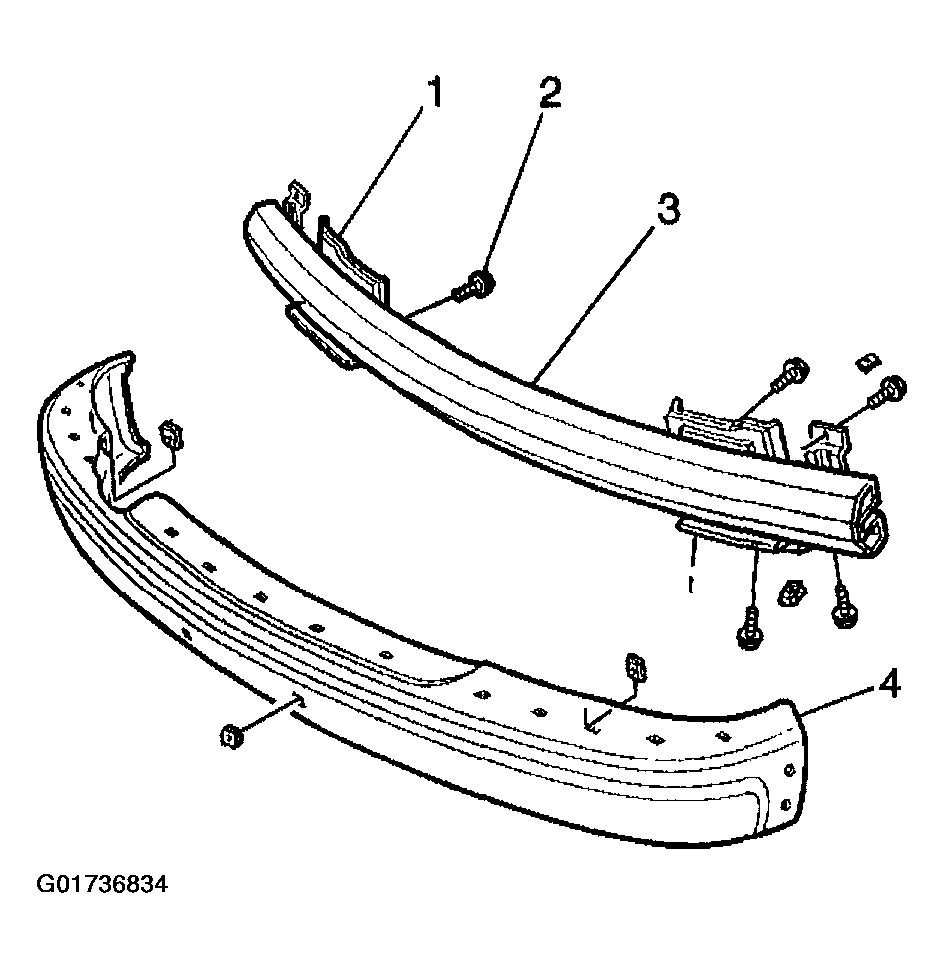

    Fig 2: Removing Front Impact Bar
    G01736834Courtesy of GENERAL MOTORS CORP.
  6. Remove the step pad from the bumper by gently squeezing the retaining tangs using pliers and pushing the tangs through the slots in the bumper. (If equipped)
  7. Remove the step pad (3) from the bumper (1).
  8. Remove the step pad extensions by removing the retaining nuts (2). (If equipped)

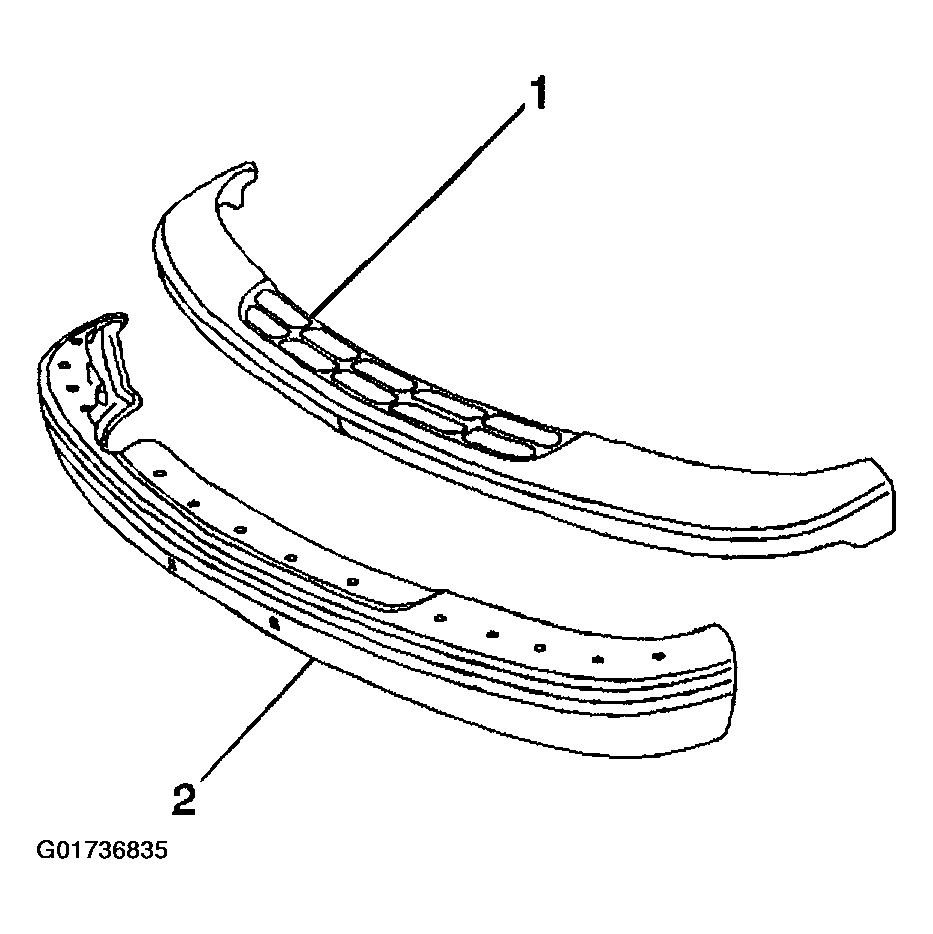

    Fig 3: Removing Step Pad From Bumper
    G01736835Courtesy of GENERAL MOTORS CORP.
