Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws retaining the license plate filler to the license plate bracket.
  2. Remove the license plate filler from the license plate bracket.

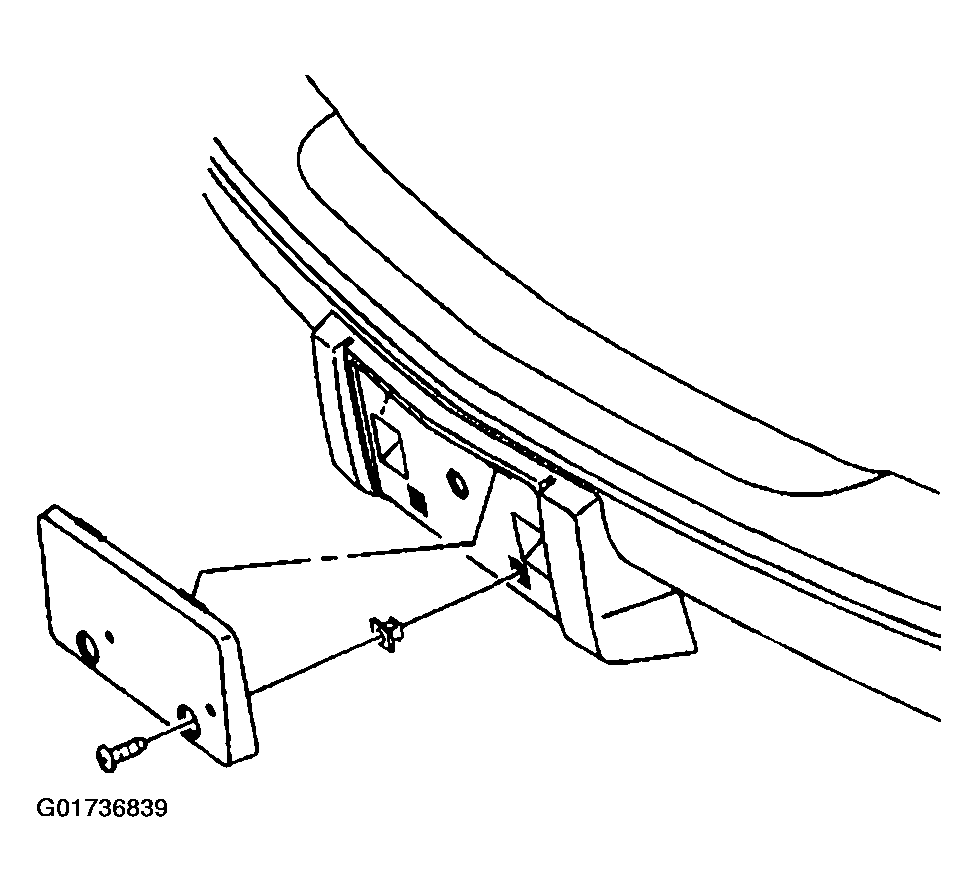

    Fig 1: Removing License Plate Filler
    G01736839Courtesy of GENERAL MOTORS CORP.
