Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front impact bar from the vehicle. Refer to Impact Bar Replacement - Front Bumper .
  2. Mark the location of the bolts and the brackets to the bumper.
  3. Remove the bolts (2) that retain the brackets (1) to the bumper (4) and the bumper reinforcement (3).
  4. Remove the brackets (1) from the bumper (4) and the bumper reinforcement (3).

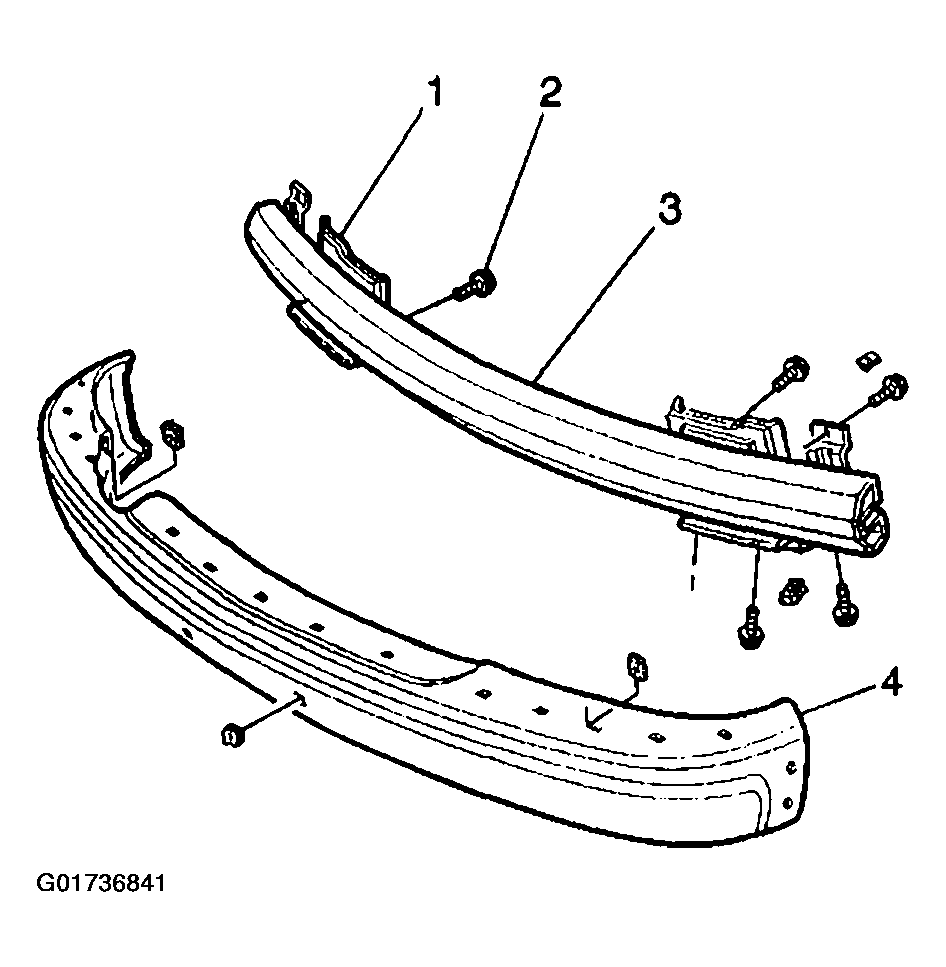

    Fig 1: Removing Bracket From Bumper
    G01736841Courtesy of GENERAL MOTORS CORP.
