Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the push pin rivets (3) that retain the front air deflector extension to the front air deflector.
  3. Remove the front air deflector extension (2) from the front air deflector (1).

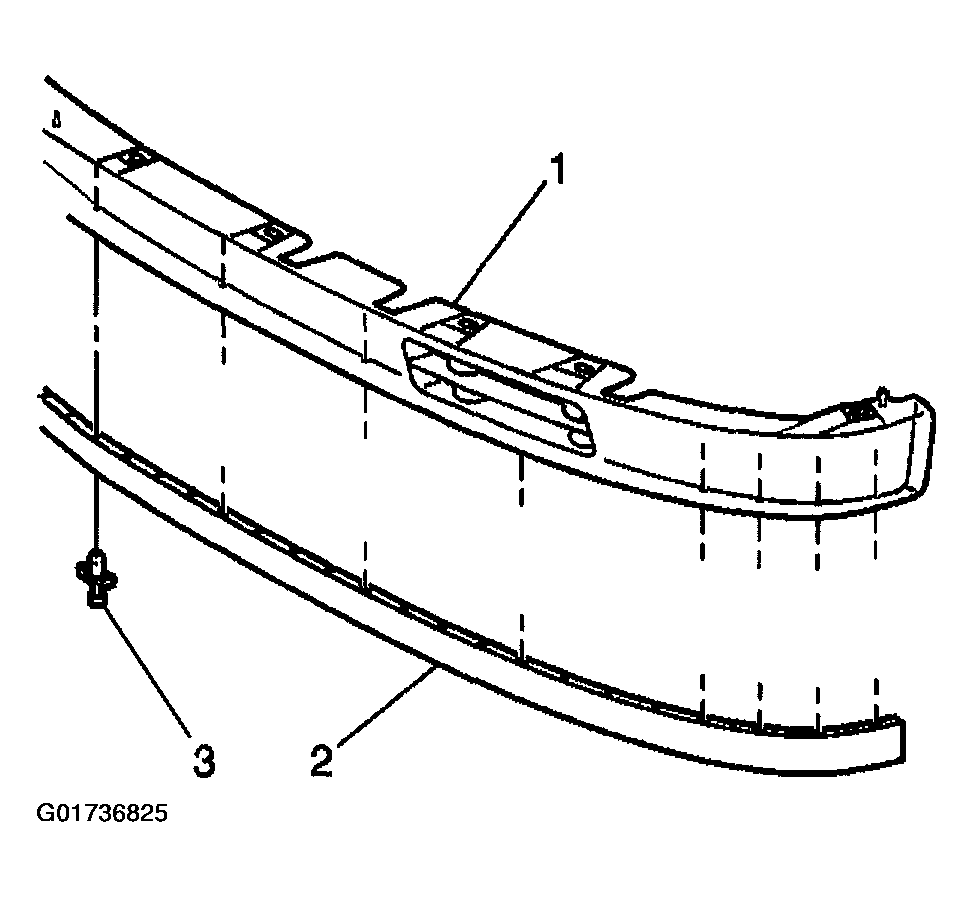

    Fig 1: Removing Front Air Deflector Extension
    G01736825Courtesy of GENERAL MOTORS CORP.
