Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air deflector extension (2) to the front air deflector (1).
  2. Install the push pin rivets (3) in order to retain the front air deflector extension (2) to the front air deflector (1).
  3. Lower the vehicle.

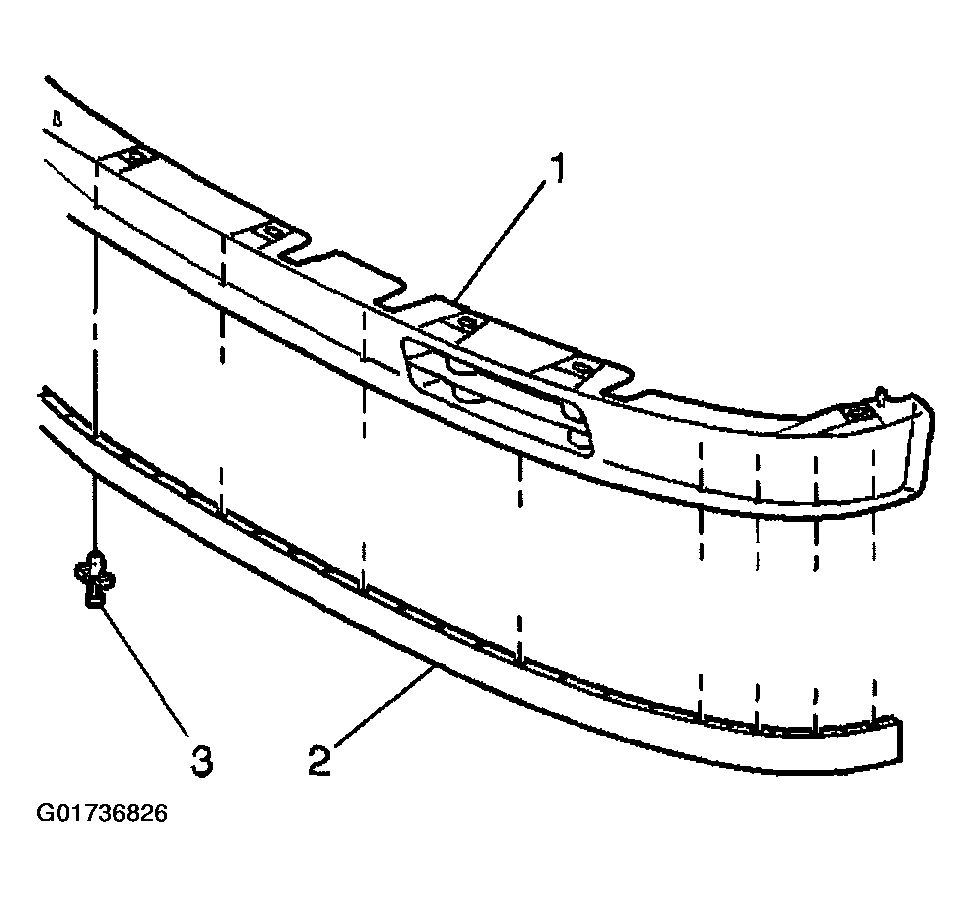

    Fig 1: Installing Front Air Deflector Extension
    G01736826Courtesy of GENERAL MOTORS CORP.
