Water Pump Removal (C/K)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the water pump bolts.
  2. Remove the water pump.
  3. Remove the water pump gaskets.

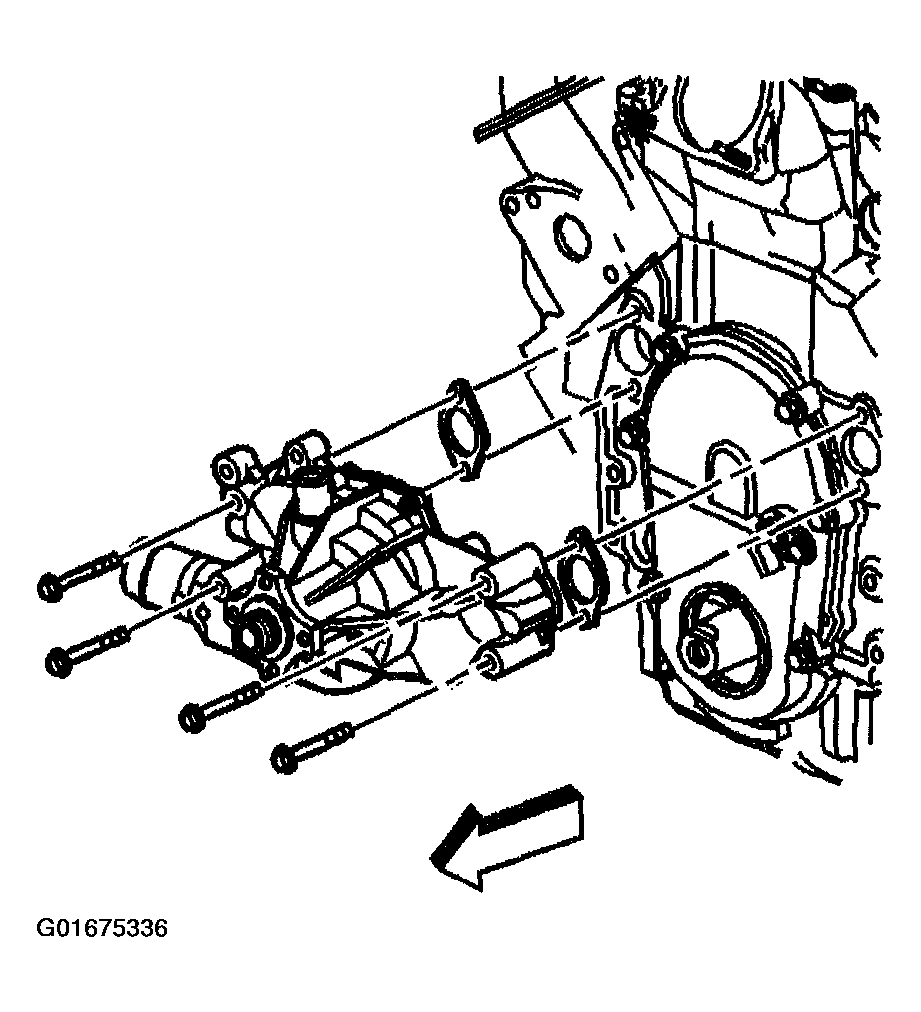

    Fig 1: Water Pump (C/K)
    G01675336Courtesy of GENERAL MOTORS CORP.
