Water Crossover Installation (G/C3500HD)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the thermostat (3) with the seal into the coolant crossover (7).
Install the water outlet (1).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the water outlet bolts (2).
Tighten

Tighten the water outlet bolts to 30 N.m (22 lb ft).

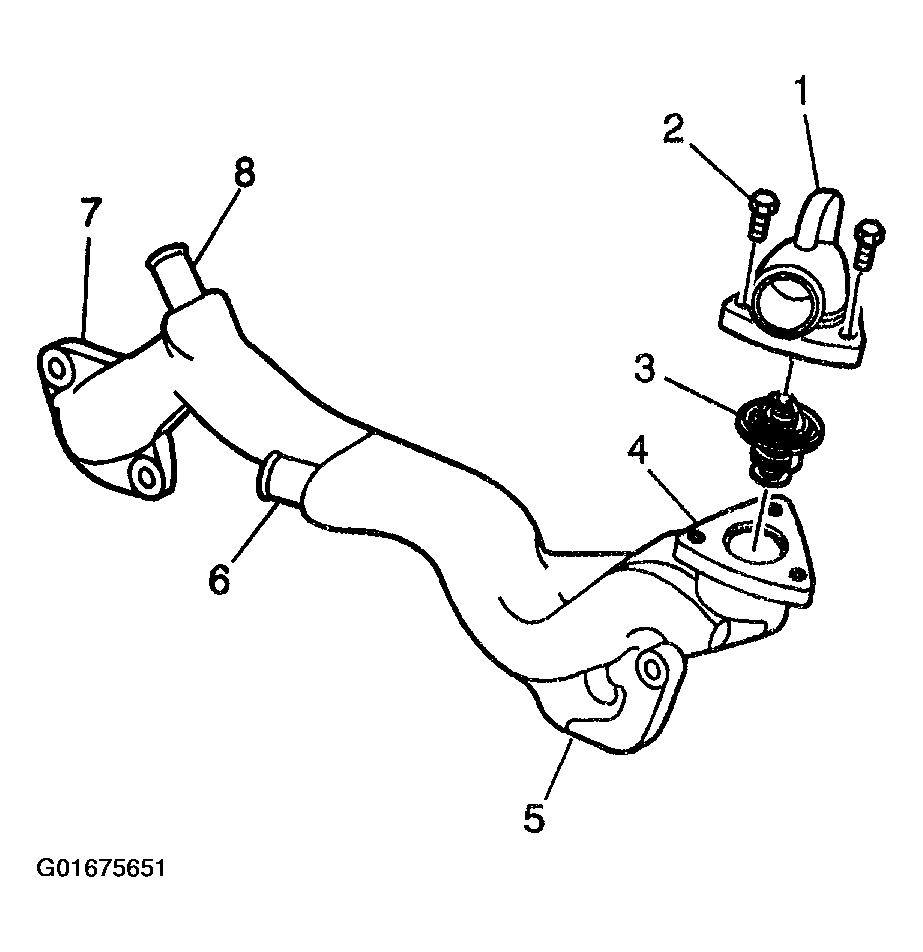

Fig 1: Coolant Crossover & Components (G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Place the coolant crossover gaskets and the coolant crossover in position.
Install the coolant crossover bolts.
Tighten

Tighten the coolant crossover bolts to 50 N.m (37 lb ft).

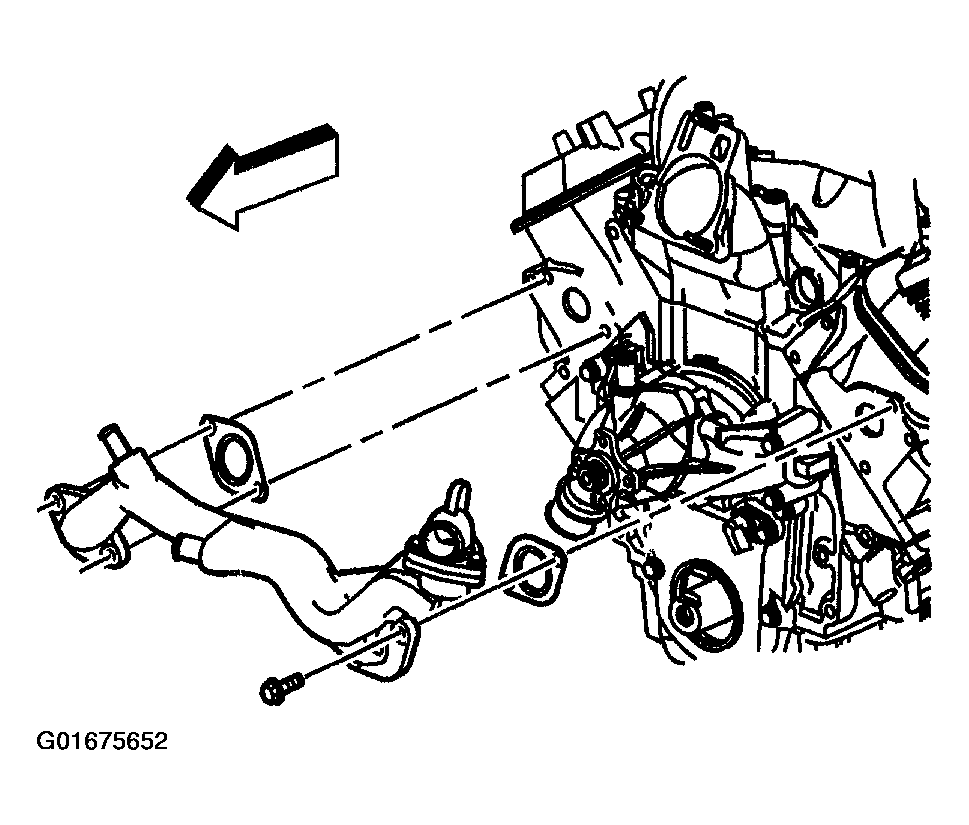

Fig 2: Coolant Crossover & Bolts (G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
Install the thermostat bypass hose clamps onto the thermostat bypass hose.
Install the thermostat bypass hose.
Important: Properly position the bypass hose clamps to avoid water pump pulley interference.
Position the thermostat bypass hose clamps.

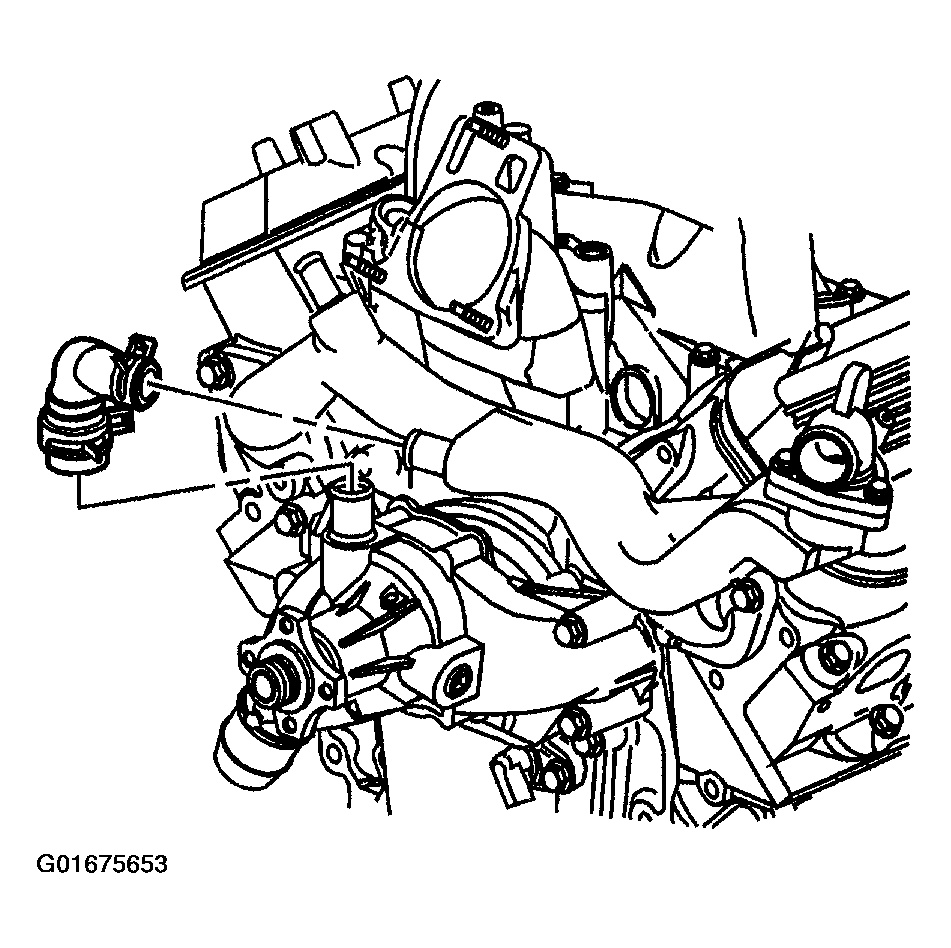

Fig 3: Thermostat Bypass Hose & Clamps (G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
