Valve Rocker Arm Cover Removal-Left

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover.

    Important:  The valve rocker arm cover gasket may be reused if not removed from valve rocker arm cover.

  3. Replace the valve rocker arm cover gasket if it is cut or damaged.

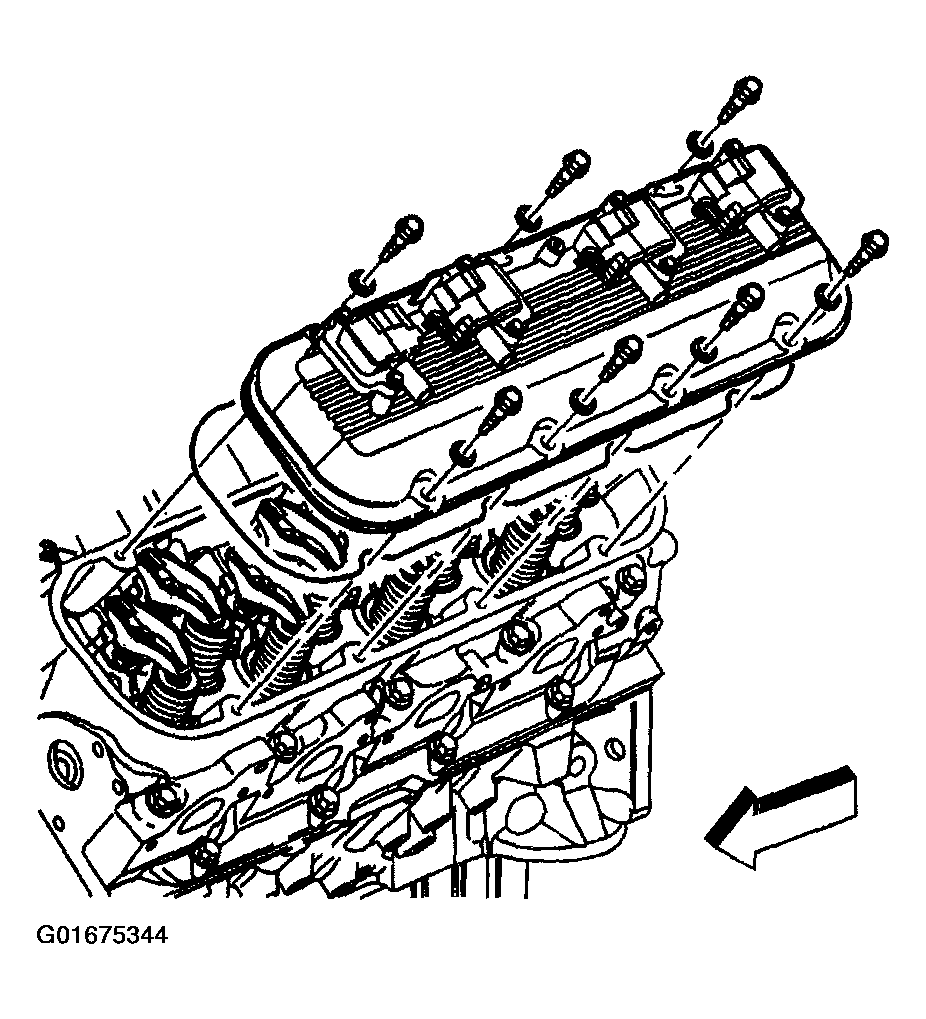

    Fig 1: Valve Rocker Arm Cover (Left)
    G01675344Courtesy of GENERAL MOTORS CORP.
