Valve Lifter Removal

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3049-A Valve Lifter Remover (Plier Type)

Important: Mark, sort, or organize the valve lifters and guides for return to their original location during assembly.

Remove the valve lifter guide retainer bolts and retainer.

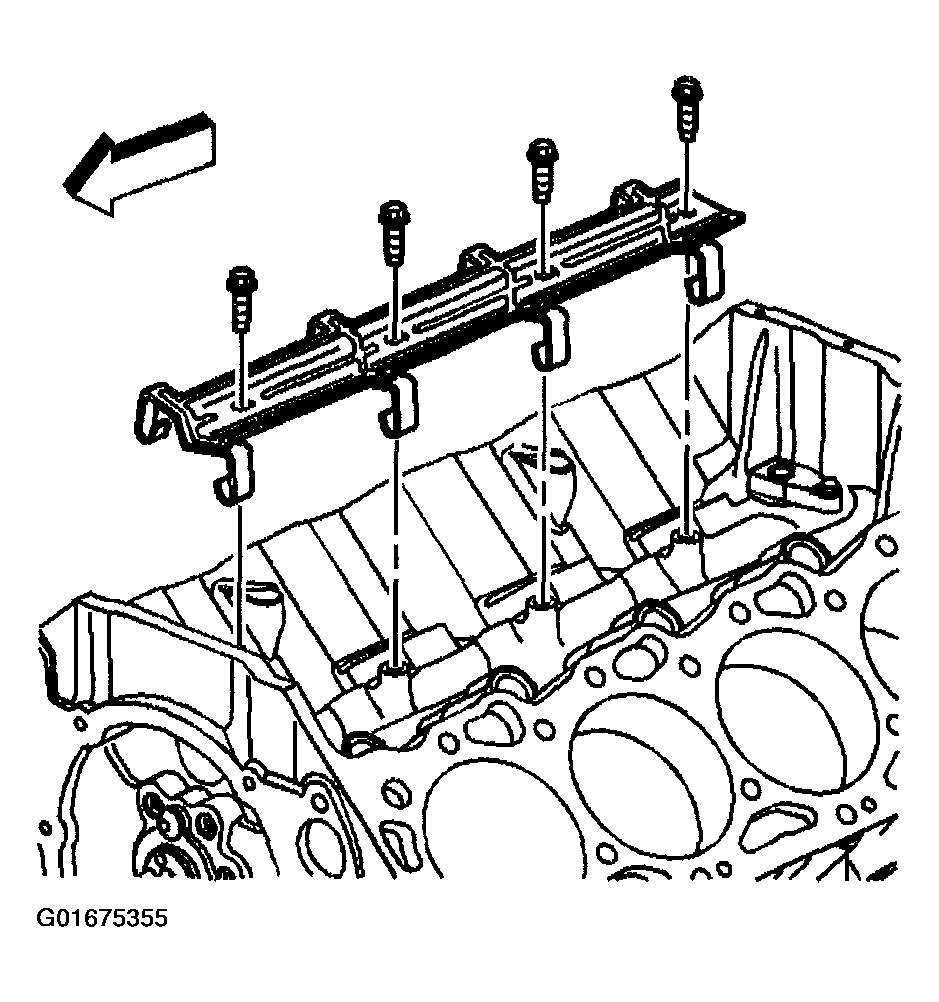

Fig 1: Valve Lifter Guide Retainer & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the valve lifter guides.
Important: Place the valve lifters in the organizer rack or tag them in a way to ensure they can be returned to the valve lifter bore from which they were removed.
Remove the valve lifters.

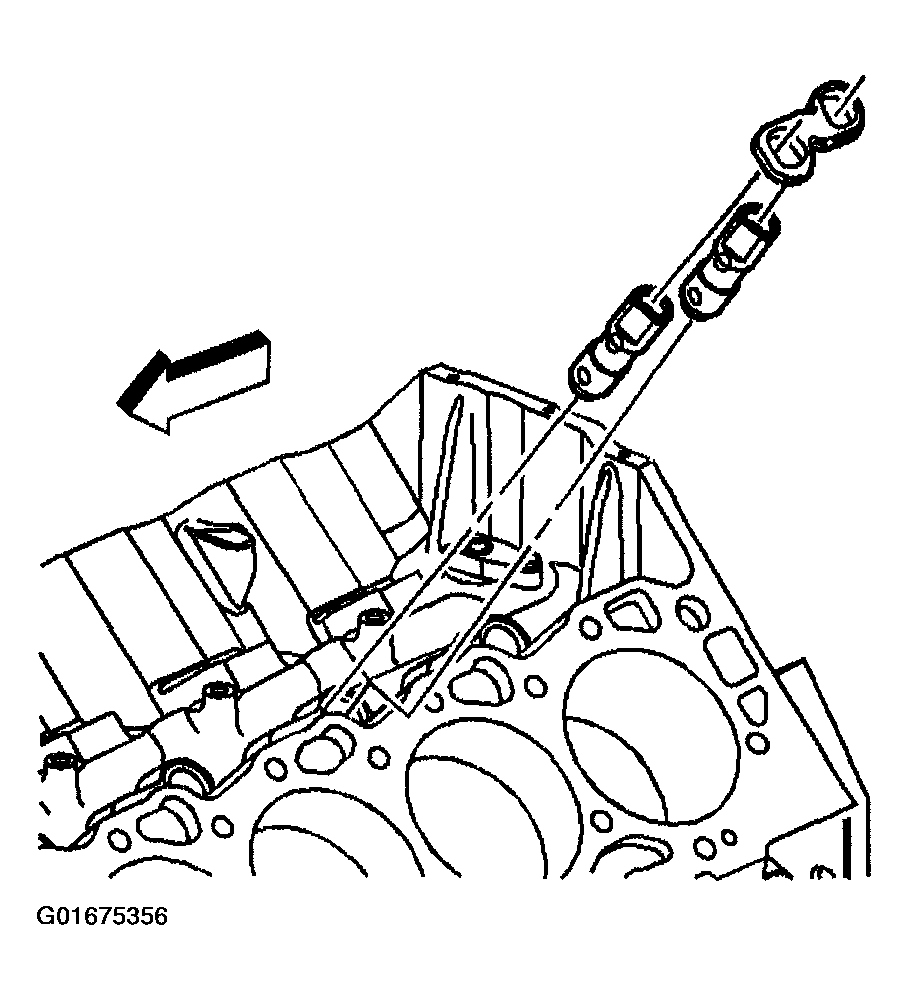

Fig 2: Valve Lifters
Courtesy of GENERAL MOTORS CORP.
Some valve lifters may be stuck in their bore due to gum or varnish deposits. These valve lifters can be removed using J 3049-A .

Fig 3: Removing Valve Lifters Using J 3049-A
Courtesy of GENERAL MOTORS CORP.
