Valve Lifter Installation

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: If a new camshaft is installed, replace all the valve lifters.

Coat the valve lifter rollers with prelube, GM P/N United States 1052367, GM P/N Canada 992869, or equivalent.
Important: If reusing the valve lifters, install in their original location. The valve lifter guide retainer must contact all of the valve lifter guides. If the valve lifter guide retainer is bent, the valve lifter guide retainer must be replaced.
Install the valve lifters.
Install the valve lifter guides over the flats on the valve lifters, making sure the rollers of the valve lifters are properly aligned with the camshaft lobes.

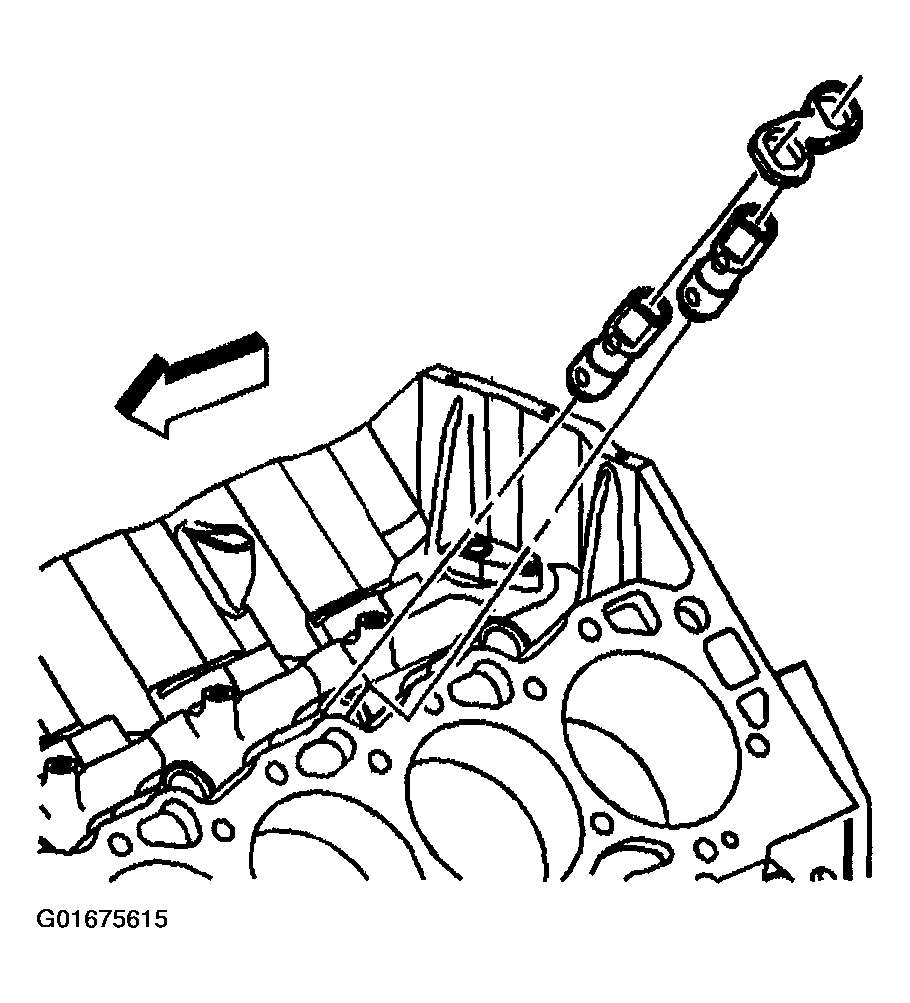

Fig 1: Valve Lifter & Guides
Courtesy of GENERAL MOTORS CORP.
Install the valve lifter guide retainer.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valve lifter guide retainer bolts.
Tighten

Tighten the valve lifter guide retainer bolts to 25 N.m (18 lb ft).

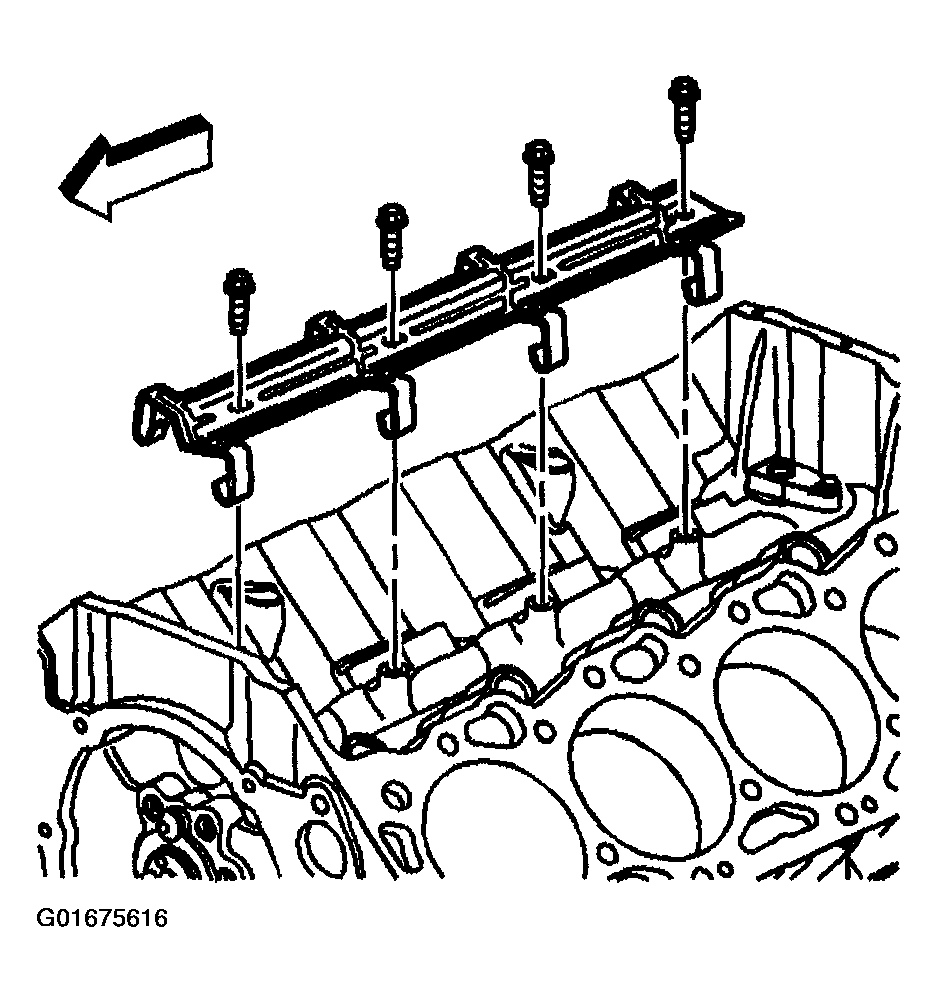

Fig 2: Valve Lifter Guide Retainer & Bolts
Courtesy of GENERAL MOTORS CORP.
