Oil Pump Drive Removal

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump drive bolt.
  2. Remove the oil pump drive.

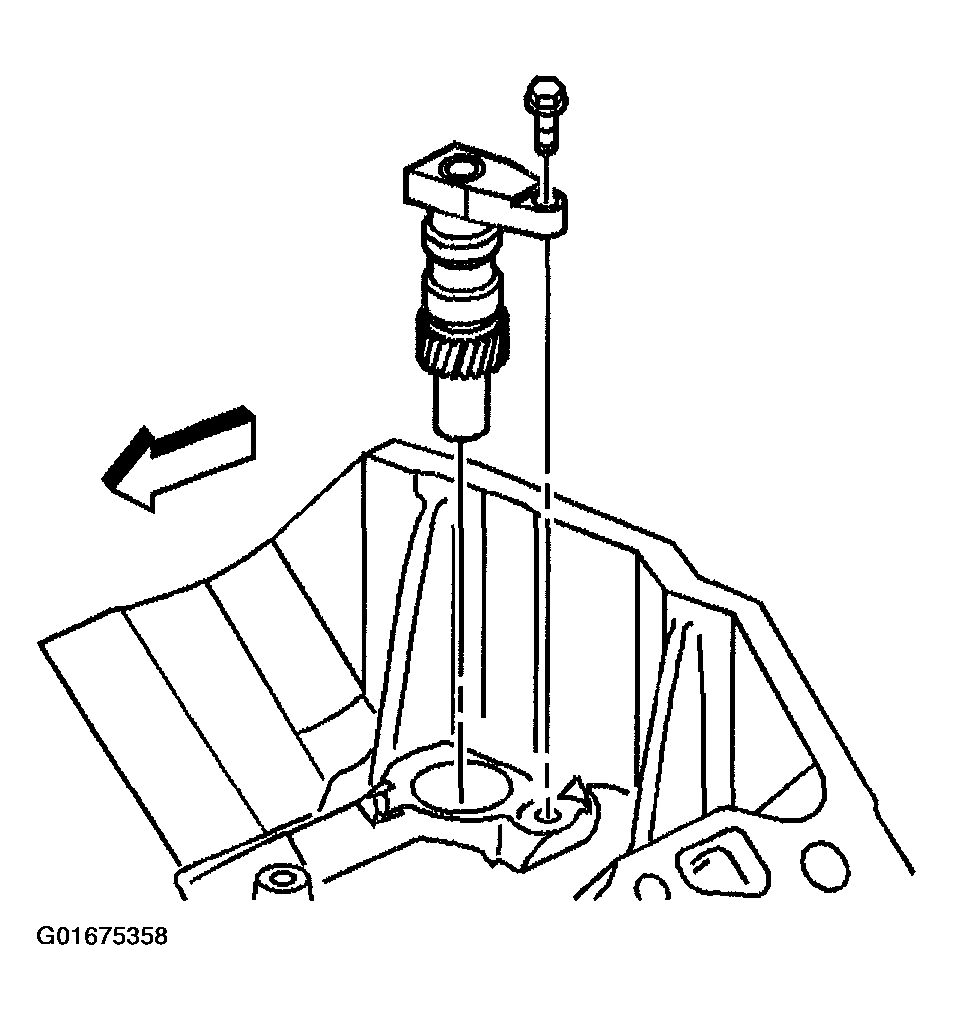

    Fig 1: Oil Pump Drive & Bolt
    G01675358Courtesy of GENERAL MOTORS CORP.
