Oil Pan Removal (C/K/G/C3500HD)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the oil level switch from the oil pan, if equipped.
Remove the oil pan bolts.

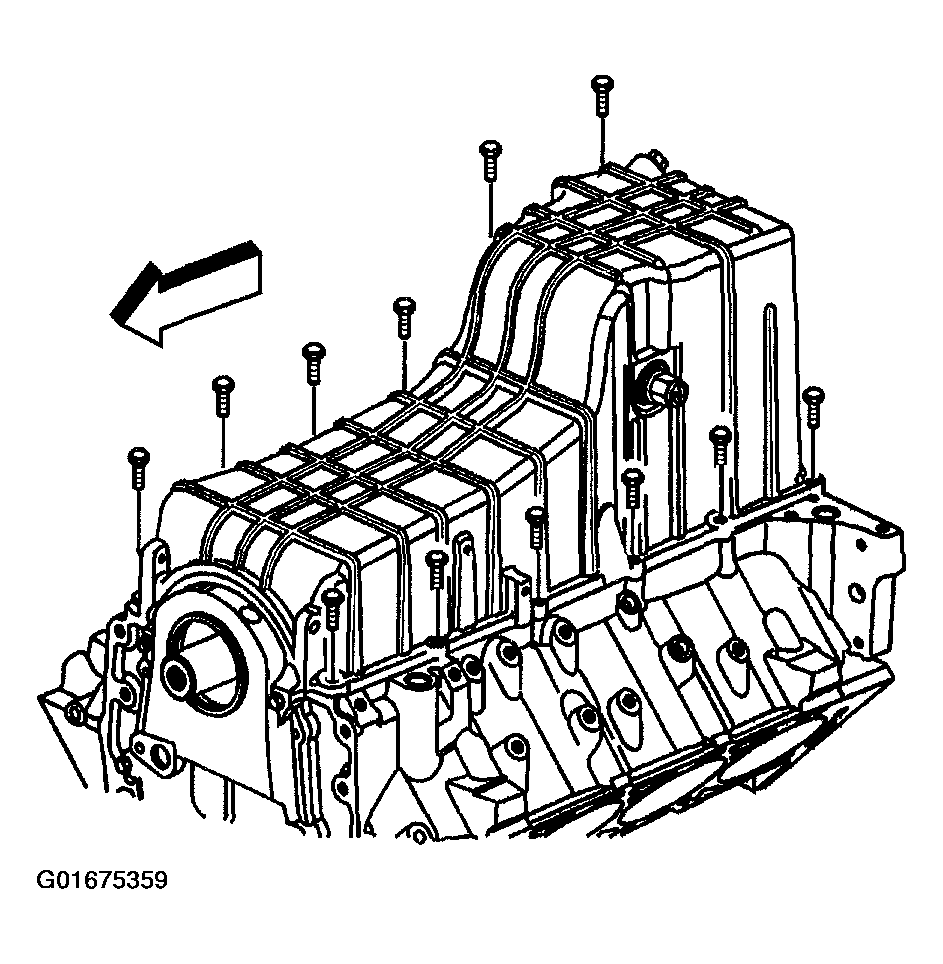

Fig 1: Oil Pan & Bolts (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.

Important: The oil pan gasket is reusable if not cut or damaged.
Remove the oil pan (1) and the captured oil pan gasket (2).

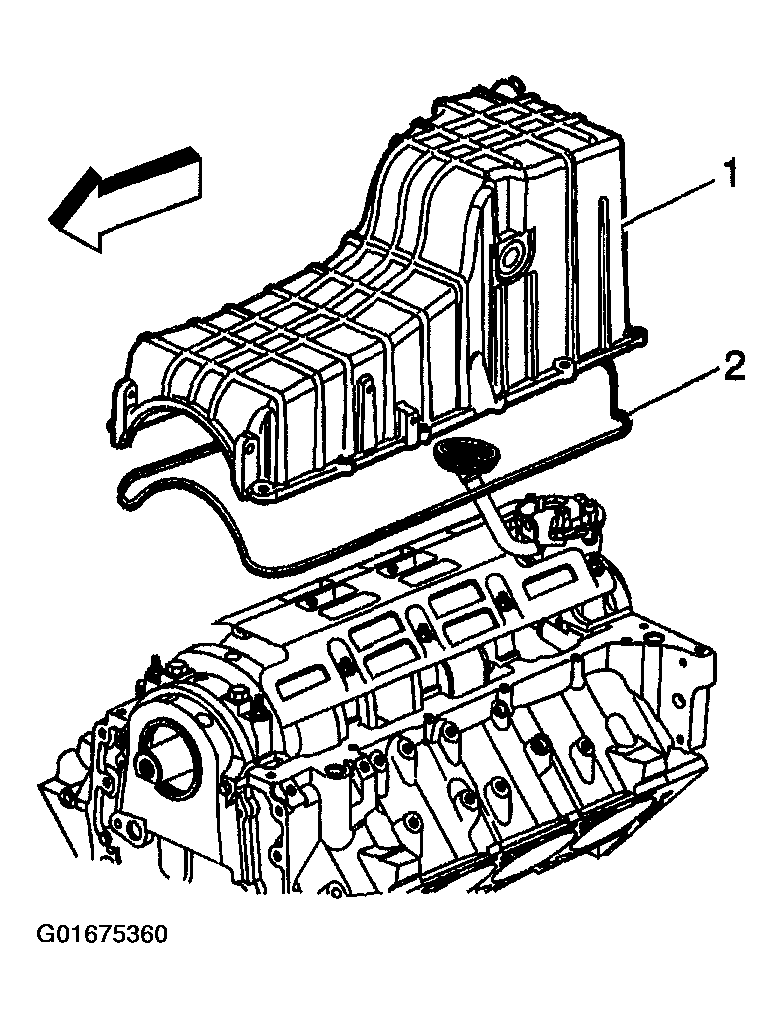

Fig 2: Oil Pan & Gasket (C/K/G/C3500HD)
Courtesy of GENERAL MOTORS CORP.
