Oil Pan Cleaning and Inspection

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan gasket (2) from the groove in the oil pan (1).
  2. Clean the oil pan in solvent.
    NOTE: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  3. Dry with compressed air.
  4. Inspect the oil pan for the following conditions:
    • The drain plug hole for damaged threads
    • Gouges or damage to the oil pan sealing surfaces
    • Cracks or damage to the exterior of the oil pan
    • Damage to the oil level indicator tube area
    • Damage to the oil pan gasket

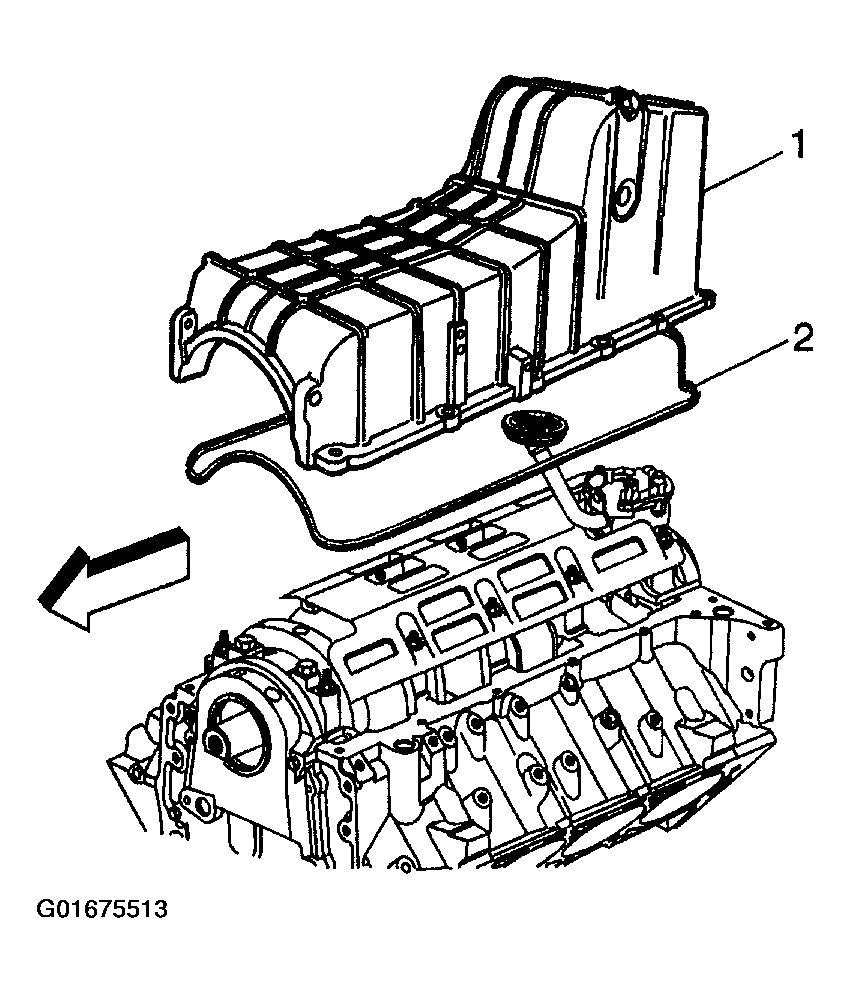

    Fig 1: Oil Pan & Gasket
    G01675513Courtesy of GENERAL MOTORS CORP.
