Oil Level Indicator and Tube Removal (G)

WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator tube bracket nut from the exhaust manifold stud.
  2. Remove the oil level indicator tube bracket from the exhaust manifold stud.
  3. Remove the oil level indicator tube from the oil pan.
  4. Remove the O-ring seal from the oil level indicator tube.

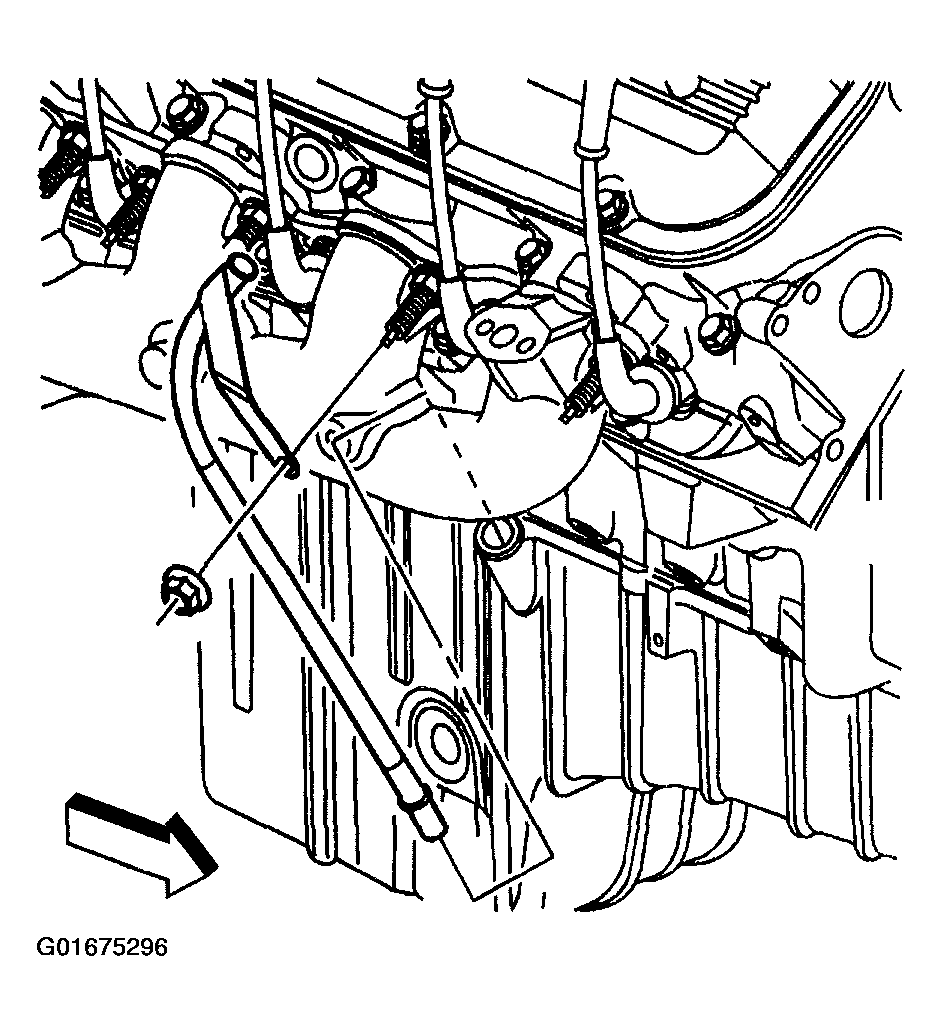

    Fig 1: Oil Level Indicator Tube (G)
    G01675296Courtesy of GENERAL MOTORS CORP.
