Oil Level Indicator and Tube Installation (G)
WARNING: This page is about a different car, the 2002 GMC Yukon XL, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: Make sure the oil level indicator tube does not come in contact with the spark plug wires. Route the spark plug wires around the oil level indicator tube.

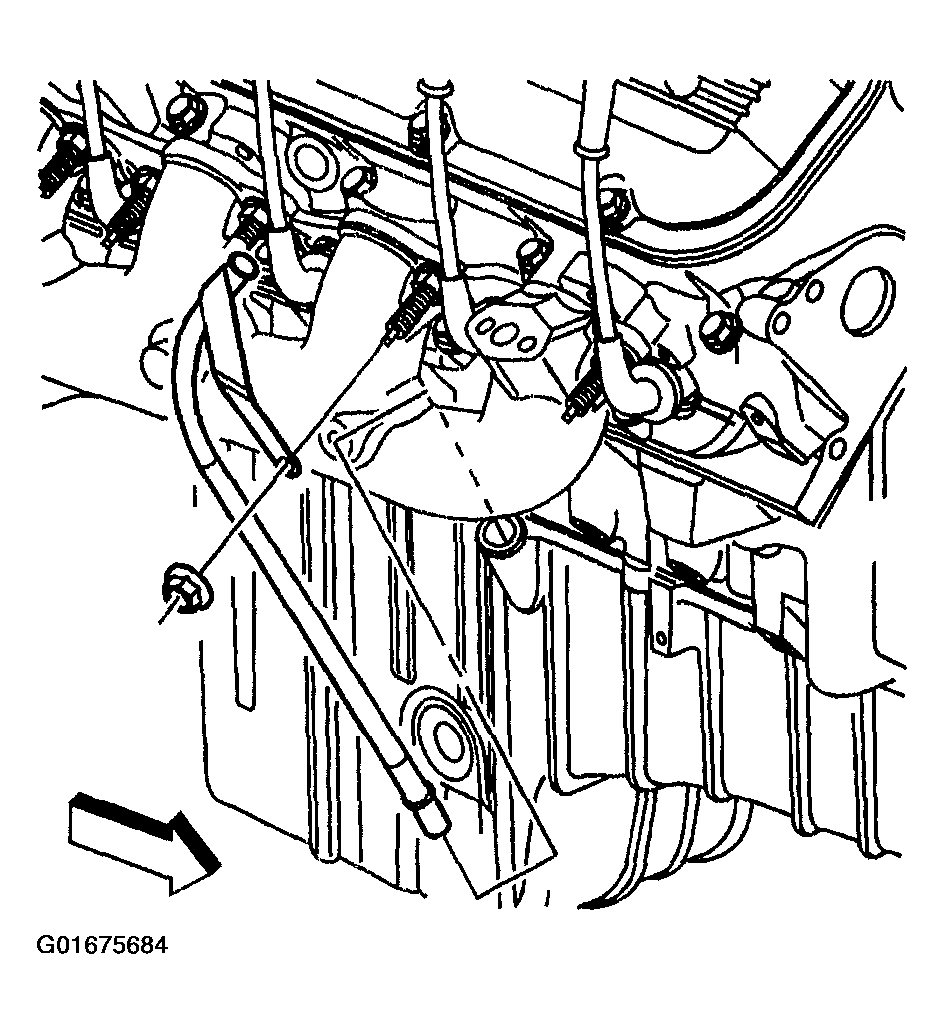

- Install a NEW O-ring seal onto the oil level indicator tube.
- Install the oil level indicator tube into the oil pan.
- Install the oil level indicator tube bracket to the exhaust manifold stud.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the oil level indicator tube bracket nut to the exhaust manifold stud.
Tighten
Tighten the oil level indicator tube bracket nut to 18 N.m (13 lb ft).
